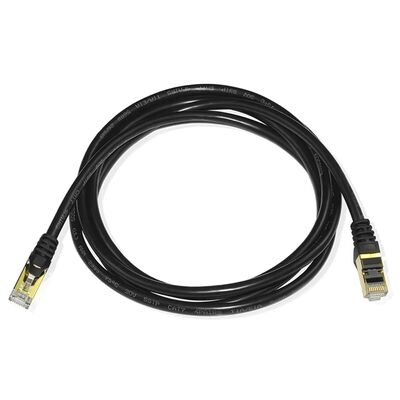

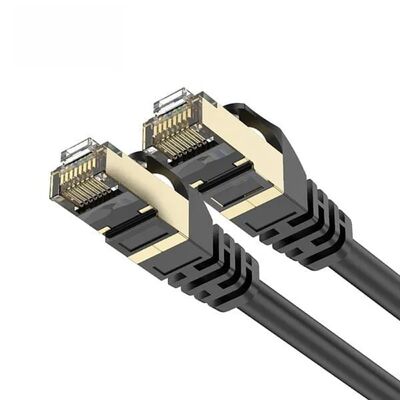

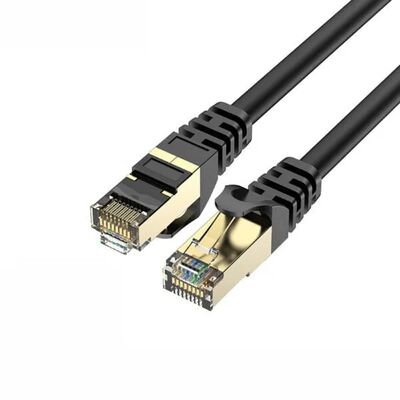

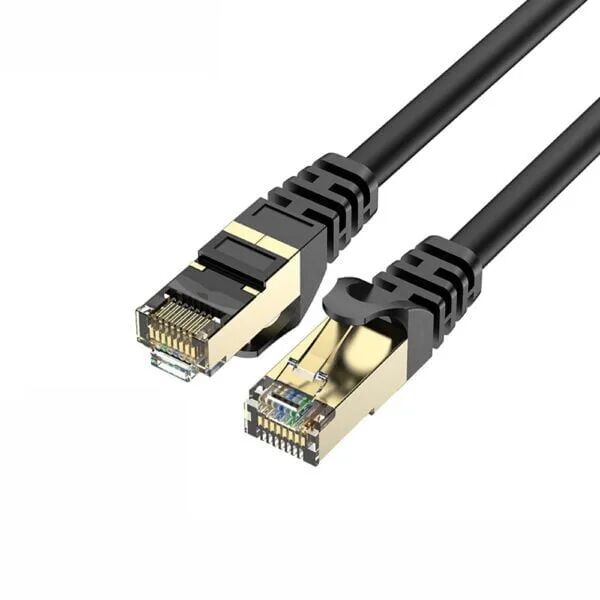

| Marchio: | ITI-LINK |
| Numero modello: | Istituzione competente |
| Moq: | 1000 pezzi |
| Prezzo: | 50$-100$ |
| Termini di pagamento: | T/T |
| Capacità di fornitura: | 1000pcs/giorno |
| Construction Item Description | Electrical Property |
|---|---|
|
Conductor
Material: Bare Solid Copper (elongation: 19-24%)
OD: 23 AWG
|
Conductor Resistance at 20°C: ≤ 9.5 Ω / 100m
Resistance unbalance within a pair: ≤ 2%
|
|
Insulation
Material: PE Skin-Foam-Skin
OD: 1.33 ±0.01 mm
Average THK: 0.37mm
Color: 1p: white + 2 blue stripes & blue
2p: white + 2 orange stripes & orange 3p: white + 2 green stripes & green 4p: white + 2 brown stripes & brown |
Insulation Resistance at 20°C: >1500 MΩ / 100m
Mutual capacitance: 5600 pF / 100m MAX
Capacitance unbalance pair to ground: ≤ 160 pF / 100m
Characteristic impedance at 100MHz: 100 ± 15 Ω
Dielectric Strength Test Voltage: 1.00KV DC or 0.7 KV AC for 1 min
No breakdown
|
|
Pair Twist
Lay & Direction:
1p: S=19.0 mm (28%) 2p: S=23.5 mm (31%) 3p: S=21.5 mm (33%) 4p: S=25.0 mm (36%) |
Mechanical Property
Insulation elongation before aging: ≥ 300%
Insulation tensile strength before aging: ≥16 MPa
Insulation elongation after aging: ≥ 150%
Insulation tensile strength after aging: ≥10.5 MPa
Jacket elongation before aging: ≥ 125%
Jacket tensile strength before aging: ≥ 10 MPa
Jacket elongation after aging: ≥ 100%
Jacket tensile strength after aging: ≥ 8 MPa
|
|
Inner Assemble
Lay: S=90 ± 5 mm
Direction: according to the drawing
OD: /
Filler
Ripcord: 3*250D
Drain Wire: /
|
Packing
Drum: NA
|
|
Pair Shield
Shield: Pair Shield
Construction: /
Material: Polyester/Aluminium (PET/ALU)
Coverage: ≥ 115%
|
|
|
Braid
Material: ɸ 0.12mm Aluminum-magnesium braided
Coverage: ≥ 40%
|
|
|
Jacket
Material: LSZH, 60P, -20~75℃
Hardness: 81± 3
OD: 8.1 ± 0.2
Average THK: 0.55 ~ 0.65
Color: black
Marking Color: White
Marking: according to the customer's requirements
|
