| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT7SF-011 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

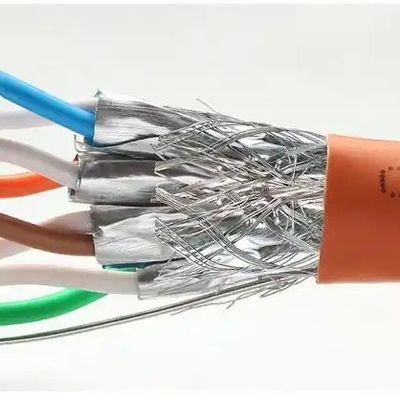

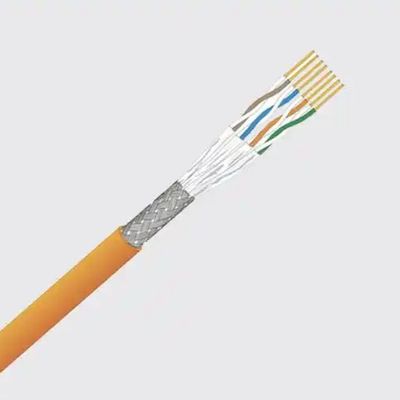

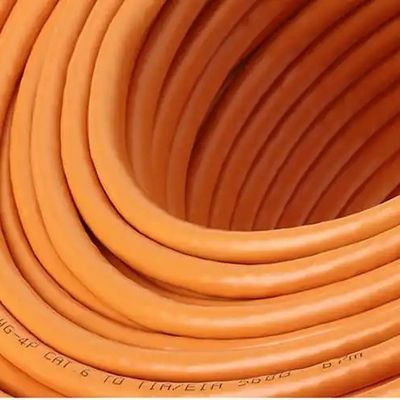

The Cat7 SFTP Shielded Ethernet Cable with 23AWG pure copper conductors delivers exceptional performance for high-speed networking applications. Rated at 600MHz with 10Gbps data transfer capability, this cable ensures reliable connectivity for demanding environments.
| Construction Item | Description | Electrical Property |
|---|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) | Conductor Resistance at 20°C ≤ 9.5 Ω/100m |
| OD | 23 AWG | Resistance unbalance within a pair ≤ 2% |
| Insulation Material | PE Skin-Foam-Skin | Insulation Resistance at 20°C >1500 MΩ/100m |
| Insulation OD | 1.33 ±0.01 mm | Mutual capacitance 5600 pF/100m MAX |
| Frequency (MHz) | Attenuation (Max dB/100m) | Propagation Delay (Max ns/100m) | Return Loss (Min dB) | NEXT (Min dB) |
|---|---|---|---|---|
| 4 | 3.74 | 552 | 25 | 78.0 |
| 100 | 19.20 | 538 | 20.10 | 72.40 |
| 600 | 50.10 | 536 | 17.30 | 60.70 |
This high-performance Cat7 cable is ideal for:
