CAT6 FTP Cable 1000FT — Shielded LAN Cable, 23AWG Solid Copper for Data Center & Industrial Networks

Marka Adı:	ITI -LINK
Model numarası:	ITI-CT6F-024
Moq:	1000 adet
Fiyat:	50$-100$
Ödeme şartları:	T/T
Tedarik Yeteneği:	2000 adet/gün

Detay Bilgisi

Ürün Açıklaması

Detay Bilgisi

Menşe yeri:

Shenzhen

Sertifika:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Bant genişliği:

350 Mhz

kategori:

Ethernet kablosu

Veri aktarım hızı:

100 Mb/sn

İletken Malzemesi:

Çıplak bakır

Kablo tipi:

FTP

Maksimum veri aktarım hızı:

1000 Mb/sn

Sertifikalar:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Renk:

Beyaz

Ambalaj bilgileri:

İç Kutu Boyutu: 32 cm × 32 cm × 18,5 cm Dış Kutu Boyutu: 39 cm × 33.5 cm × 34 cm

Vurgulamak:

shielded CAT6 FTP cable 1000ft

23AWG solid copper LAN cable

data center CAT6 FTP cable

Ürün Açıklaması

CAT6 FTP Cable 1000FT — Shielded LAN Cable, 23AWG Solid Copper for Data Center & Industrial Networks

CAT6 FTP shielded LAN cable, 23AWG solid copper, 1000FT. Engineered for long runs, high stability and easy cable management in offices, retail, industrial facilities and data centers. LSZH variant available.

Product Overview

The ITI-LINK CAT6 FTP 23AWG Solid Copper Cable (1000FT) is engineered for stable high-speed networks needing shielded protection.

Performance

FTP shielding plus high-precision 23AWG solid bare copper yield consistent bandwidth and reduced packet loss in EMI-heavy environments — perfect for data centers and industrial automation.

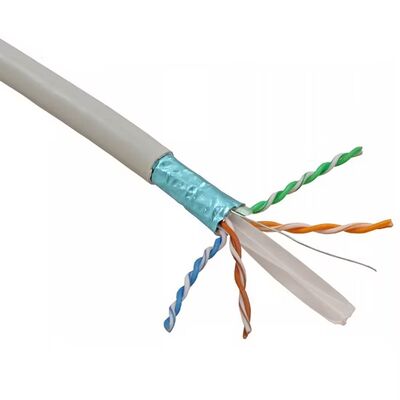

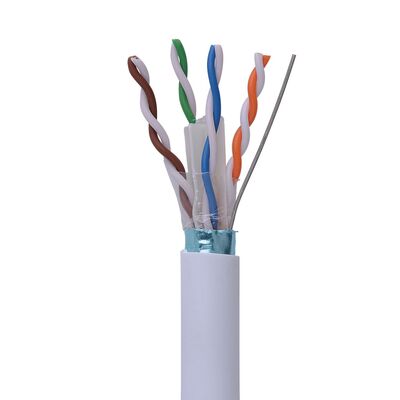

Structure & Materials

Four twisted pairs with a central cross-spline
Aluminum foil shield for EMI protection
White PVC/PE outer jacket
Solid copper conductors for improved conductivity
Optional LSZH jacket for smoke-safety requirements

Application Value

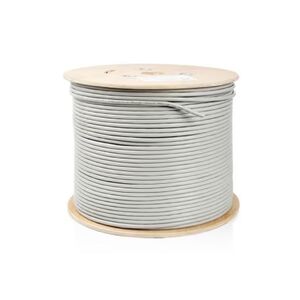

Use as a data center cable, industrial network cable, or backbone run in office buildings, retail chains, campuses and 5G base stations. 1000FT spool reduces joins and connectors, improving reliability.

Brand Trust

ITI-LINK's ITI-CT6F-028 follows rigorous testing to meet installation demands — trusted by installers and network engineers.

Technical Parameters

Electrical Properties

Parameter	Standard	Value
Conductor Resistance at 20°C	NF EN 50289-1-2 / IEC 60189-1	≤ 9.5 Ω / 100m
Resistance unbalance within a pair	NF EN 50289-1-2/ IEC 60708	≤ 5%
Dielectric Strength	NF EN 50289-1-3 / IEC 61196-1-105	No breakdown
Insulation Resistance at 20°C	NF EN 50289-1-4 / IEC 60885-1	>1500 MΩ / 100m
Mutual capacitance	NF EN 50289-1-5 /IEC 60189-1	5600pF / 100m MAX
Capacitance unbalance pair to ground	NF EN 50289-1-5 / IEC 60189-1	≤ 160 pF / 100m
Characteristic impedance at 100MHz	NF EN 50289-1-11/ IEC 61156-1	100 ± 15 Ω
Spark Test	UL444	2000 ± 250VOC

Transmission Properties

Frequency (MHz)	Attenuation (Max dB/100m)	Propagation Delay (MAX ns/100m)	Return Loss (Min dB)	NEXT (Min dB)
1	4	552	45	23.01
8	5.32	546.73	24.52	61.75
10	5.95	545.38	25	60.3
16	7.55	543	25	57.24
20	8.47	542.05	25	55.78
25	9.51	541.2	24.32	54.33
31.25	10.67	540.44	23.64	52.88
50	13.66	539.09	22.21	49.82
62.5	15.38	538.55	21.54	48.36
100	19.8	537.6	20.11	45.3
125	22.36	537.22	19.43	43.85
200	28.98	536.55	18	40.78
250	32.85	536.28	17.32	39.33

* are the reference values

Applications

Server Rack to Switch Interconnects: Low-loss runs for mission-critical equipment.
Building Infrastructure Projects: Long-span installations for multi-floor buildings and multi-building campuses.
Telecom & 5G Equipment Rooms: Shielded LAN cable for reliable signal in radio and power-dense racks.
Retail Chains & Logistics Hubs: Wide-area cabling for POS, inventory systems and barcode readers.
Safe-Required Installations: Choose LSZH variant for tunnels, public buildings and projects with strict fire-safety codes.
