500 Feet Network Cable CAT6A SFTP CPR LSZH Network Cable For Commercial Projects

Name: 500 Feet Network Cable CAT6A SFTP CPR LSZH Network Cable For Commercial Projects
Brand: Integrity Cable Co., Limited
SKU: ITI-CTSF6A-016
Availability: InStock

Brand Name:	ITI -LINK
Model Number:	ITI-CTSF6A-016
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Flame Retardant Grade:

CPR Dca-s2,d2,a1

Data Transfer Rate:

100 Mbps

Color:

Blue

Conductor Size:

23 AWG

Conductor Amaterial:

Bare Copper

Cable Type:

Unshielded Twisted Pair

Length:

500 Ft

Jacket Material:

LSZH

Packaging Details:

Inner box size: 32 cm (length) × 32 cm (width) × 18.5 cm (height) Outer box size (for packing): 39 cm (length) × 33.5 cm (width) × 34 cm (height)

Highlight:

500Feet Network Cable CAT6A

CAT6A SFTP Network Cable

Commercial LSZH Network Cable

Product Description

500Feet Network Cable CAT6A SFTP CPR LSZH Network Cable For Commercial Projects

Bulk Sale ITI-LINK ITI-CTSF6A-016 CAT6A S FTP CPR Dca-s2,d2,a1 LSZH Industrial-Grade Shielded Network Blue Cable

ITI-LINK is thrilled to introduce the ITI-CTSF6A-016, a top-tier CAT6A S FTP cable meticulously crafted for commercial projects demanding high-speed, reliable network connectivity. Offered in convenient 500ft bulk reels, this industrial-grade shielded network cable features a CPR Dca-s2,d2,a1 certified LSZH blue jacket, making it an ideal choice for large-scale deployments in data centers, corporate offices, and industrial facilities. With its dual-layer shielding and 10Gbps data transfer rate at 550MHz, the ITI-CTSF6A-016 ensures seamless performance even in environments prone to electromagnetic interference (EMI) and radio-frequency interference (RFI).

Unmatched Signal Integrity with 23AWG Oxygen-Free Copper

The ITI-CTSF6A-016 is constructed with four pairs of 23AWG oxygen-free copper conductors, engineered to minimize signal loss over extended distances. This design guarantees consistent 10Gbps data transfer across the 500ft length of each reel, making it perfect for setting up expansive network backbones in server farms, financial institutions, and smart building networks. The cable's LSZH blue jacket not only meets stringent fire safety regulations but also ensures zero halogen emissions and minimal smoke production, making it fully compliant with the safety codes of healthcare facilities, educational institutions, and commercial buildings.

LSZH Blue Jacket: Safety, Visibility, and Professional Appeal

The distinctive LSZH blue jacket of the ITI-CTSF6A-016 offers multiple benefits:

Enhanced Fire Safety: Adhering to EN 50265-2-1 and IEC 61034 standards, the jacket significantly reduces the release of toxic fumes and smoke during emergencies, ensuring a safer environment for occupants.
Streamlined Installation: The high-visibility blue color helps reduce misrouting errors by up to 35% in complex network setups, allowing for quicker and more accurate installations in data centers and office buildings.
Professional Aesthetics: The sleek blue hue adds a touch of professionalism and seamlessly integrates with various architectural designs, making it a popular choice for cleanroom environments, hospitals, and modern office spaces.

Technical Specifications for Future-Ready Networks

Bandwidth: 550MHz, supporting future upgrades to 25GBASE-T/50GBASE-T standards.
Jacket: LSZH (Low Smoke Zero Halogen), CMX-rated for use in plenum spaces.
Certifications: UL, CPR Dca-s2,d2,a1, CE, RoHS, IEEE 802.3ab, ensuring the highest quality and safety standards.
Warranty: Backed by a 25-year performance guarantee and 24/7 technical support, providing peace of mind for long-term network investments.

Exclusive Bulk Order Advantages for Wholesale Buyers

Competitive Pricing: Enjoy attractive volume discounts starting from 20 reels, making it a cost-effective solution for large-scale projects.
Rapid Fulfillment: With a daily production capacity of 2,000 reels, we can meet tight deadlines and ensure prompt delivery for urgent network installations.
Customization Options: Tailor your order with branded reels, custom color-coded jackets, and cut-to-length services to suit your specific project requirements.

Why ITI-LINK's CAT6A S FTP Cable Stands Out?

The ITI-CTSF6A-015 combines industrial-grade durability, advanced shielding technology, and superior safety compliance, all wrapped in a high-visibility blue LSZH jacket. Whether you're a system integrator, network contractor, or IT manager overseeing a commercial project, this CAT6A S FTP cable offers the perfect blend of performance, reliability, and aesthetic appeal.

Don't miss out on the opportunity to upgrade your network infrastructure with the ITI-CTSF6A-016. Contact us today to discuss bulk pricing, request a free sample, and experience the ITI-LINK difference for yourself!

Technical Parameters

Cable Type	CAT6A SFTP Ethernet Cable
Jacket Material	LSZH
Conductor Size	23AWG
Frequency	500MHz
Length	500Feet
Conductor Material	Copper
Jacket Color	Blue
Shielding Type	SFTP

Detailed Specifications

Construction Item Description	Electrical Property
Conductor Material	Bare Solid Copper(elongation: 19-24%)
Conductor Resistance at 20°C	≤ 9.5 Ω / 100m
OD	23 AWG
Resistance unbalance within a pair	≤ 2%
Insulation Material	PE Skin-Foam-Skin
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V	>1500 MΩ / 100m
Mutual capacitance	5600 pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz	≤ 160 pF / 100m
Characteristic impedance at 100MHz	100 ± 15 Ω

Applications

ITI-LINK proudly presents the ITI-CTSF6A-016, a premium CAT6A SFTP cable engineered for large-scale commercial deployments. Wrapped in a CPR Dca-s2,d2,a1 certified LSZH blue jacket, this 500ft bulk reel combines 10Gbps performance at 550MHz with dual-layer shielding, making it ideal for EMI/RFI-prone environments.

Data Centers & Cloud Infrastructure

The ITI-CTSF6A-015 CAT6A S FTP cable is tailor-made for high-density server environments:

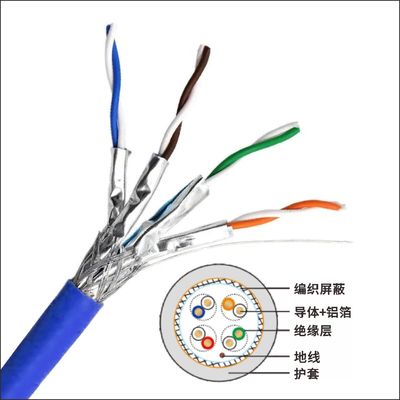

ToR/EoR Cabling: Its dual-layer shielding (aluminum foil + braided copper) ensures 65dB+ EMI/RFI attenuation, critical for 40G/100G backbone networks in data centers.
Edge Computing Nodes: Supports low-latency connections for edge servers in colocation facilities, enabling real-time data processing for IoT and AI applications.
Plenum Spaces Compliance: The LSZH blue jacket meets UL 94 V-0 and EN 50265-2-1 standards, making it safe for plenum installations in cloud data centers.

Commercial & Office Networks

For enterprise-scale office deployments, this CAT6A SFTP LSZH cable excels in:

Multi-Floor LANs: Enables 10Gbps connectivity for VoIP systems, 4K video conferencing, and collaborative workspaces across high-rise offices.
Retail Chains: Powers POS systems, inventory IoT networks, and security camera systems in franchise locations, with the blue jacket enhancing cable management visibility.
Healthcare Facilities: Complies with HIPAA and NFPA 99 standards, ensuring secure data transmission in hospitals while minimizing smoke/halogen emissions in medical zones.

Industrial & Manufacturing Environments

Industrial-grade durability meets safety in these applications:

Smart Warehouses: Connects automated guided vehicles (AGVs), robotic picking systems, and real-time inventory tracking in logistics hubs.
Manufacturing Control Rooms: Supports PLC and SCADA systems in factories, with dual shielding preventing signal interference from heavy machinery.
Food & Beverage Plants: The corrosion-resistant LSZH jacket withstands cleaning agents and humidity, making it suitable for processing plant networks.

Frequently Asked Questions

Q: What is the brand name of this SFTP CAT6A cable?

A: The brand name of this SFTP CAT6A cable is ITI-LINK.

Q: What is the model number of this SFTP CAT6A cable?

A: The model number of this SFTP CAT6A cable is ITI-CTSF6A-016.

Q: Where is this SFTP CAT6A cable manufactured?

A: This SFTP CAT6A cable is manufactured in SHENZHEN.

Q: Is this SFTP CAT6A cable suitable for outdoor use?

A: No, this SFTP CAT6A cable is not suitable for outdoor use as it is not designed to withstand harsh weather conditions.

Q: What is the length of this SFTP CAT6A cable?

A: The length of this SFTP CAT6A cable varies and can be selected based on your needs during purchase.
