| Brand Name: | ITI -LINK |
| Model Number: | ITI-CTSF6A-017 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
| Construction | Electrical Properties | ||
|---|---|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) | Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Conductor OD | 23 AWG | Resistance unbalance within a pair | ≤ 2% |
| Insulation Material | PE Skin-Foam-Skin | Insulation Resistance at 20°C | >1500 MΩ / 100m |
| Insulation OD | 1.35 ±0.01 mm | Mutual capacitance | 5600 pF / 100m MAX |
| Pair Twist Lay Direction | 1p: S=19.0 mm (27%) 2p: S=23.5 mm (35%) 3p: S=21.5 mm (31%) 4p: S=27.0 mm (40%) |
Characteristic impedance at 100MHz | 100 ± 15 Ω |

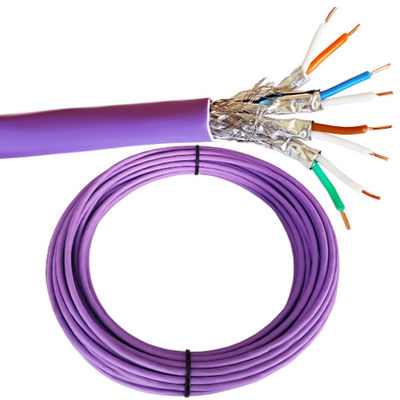

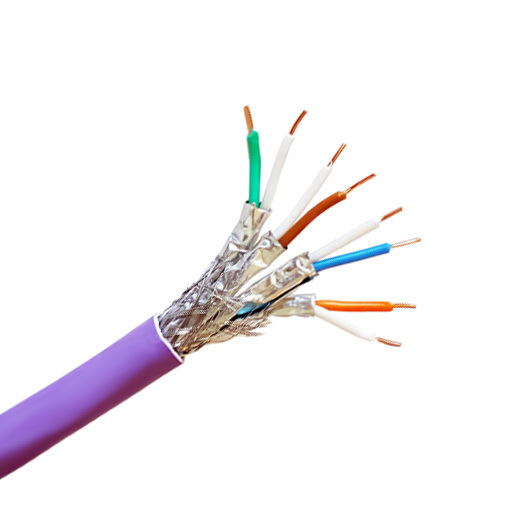

| Shield Construction | Aluminium (PET/ALU) with ≥ 115% coverage | Dielectric Strength Test Voltage | 1.00KV DC or 0.7 KV AC for 1 min |
| Jacket Material | PVC, 50P, -20~75℃ | Mechanical Properties | See detailed specifications |
| Frequency (MHz) | Attenuation (Max) (dB/100m) | Propagation Delay (Max) (ns/100m) | Return Loss (Min) (dB) | NEXT (Min) (dB) |
|---|---|---|---|---|
| 4 | 3.8 | 552 | 45 | 66.27 |
| 8 | 5.31 | 546.73 | 45 | 61.75 |
| 10 | 5.93 | 545.38 | 45 | 60.3 |
| 16 | 7.49 | 543 | 45 | 57.24 |
| 20 | 8.38 | 542.05 | 45 | 55.78 |
| 25 | 9.38 | 541.2 | 45 | 54.33 |
| 31.25 | 10.5 | 540.44 | 45 | 52.88 |
| 50 | 13.36 | 539.09 | 45 | 49.82 |
| 62.5 | 14.99 | 538.55 | 45 | 48.36 |
| 100 | 19.13 | 537.6 | 45 | 45.3 |
