Data Transfer SFTP CAT5E Cable 100MHz For Green LSZH High Speed

Name: Data Transfer SFTP CAT5E Cable 100MHz For Green LSZH High Speed
Brand: Integrity Cable Co., Limited
SKU: ITI-CT5SF-021
Availability: InStock

Brand Name:	ITI -LINK
Model Number:	ITI-CT5SF-021
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Cable Shielding:

SFTP

Color:

Green

Conductor Material:

Bare Copper

Frequency:

100MHz

Cable Length:

500Ft

Jacket Material:

LSZH

Conductor Gauge:

24 AWG

Cable Type:

CAT5E

Packaging Details:

Inner box size: 30x30x20cm Outer box size (for packing): 42x31.5x32CM

Highlight:

LSZH SFTP CAT5E Cable

100MHz SFTP CAT5E Cable

24AWG SFTP CAT5E Cable

Product Description

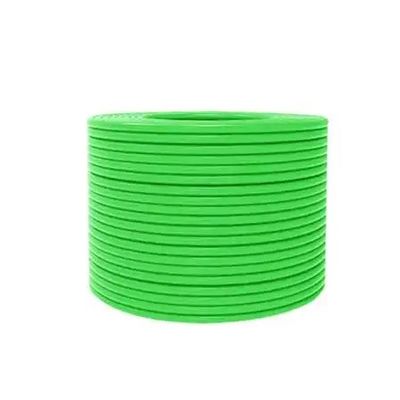

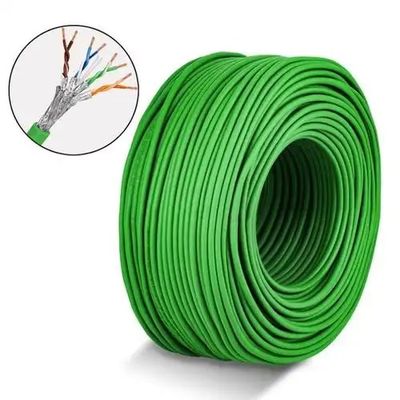

ITI-LINK ITI-CT5SF-021 SFTP CAT5E Cable - 500ft Bulk Green LSZH

High-Speed Data Transfer Solution

The ITI-LINK ITI-CT5SF-021 SFTP CAT5E Ethernet Cable delivers reliable performance for wholesale buyers. Each 500-foot box features 24AWG conductors with a green Low Smoke Zero Halogen (LSZH) jacket, supporting 100MHz frequency for stable 1Gbps data transfer.

Key Features

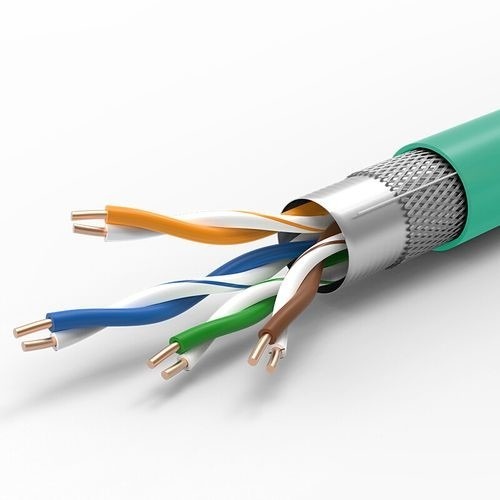

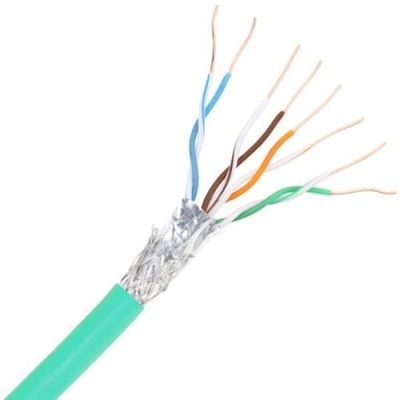

SFTP (Shielded Twisted Pair) design for superior EMI/RFI protection
24AWG oxygen-free copper conductors for optimal conductivity
Green LSZH jacket for easy identification and enhanced safety compliance
500-foot bulk packaging for cost-effective large-scale deployments
Supports bandwidth-intensive applications (4K video, gaming, file sharing)

Technical Specifications

Cable Type	CAT5E
Cable Length	500Ft
Cable Shielding	SFTP
Conductor Material	Copper
Conductor Gauge	24 AWG
Jacket Color	Green

Electrical Properties

Property	Value
Conductor Resistance at 20°C	≤ 9.5 Ω / 100m
Resistance unbalance within a pair	≤ 2%
Insulation Resistance	>1500 MΩ / 100m
Mutual capacitance	5600 pF / 100m MAX
Characteristic impedance at 100MHz	100 ± 15 Ω

Applications

Data center server and switch connections
Office building high-speed LANs
Industrial automation networks
Smart city infrastructure
Hospital and school networks
Residential broadband upgrades

Frequently Asked Questions

Q: What is the brand name of this SFTP CAT5E cable?

A: The brand name of this cable is ITI-LINK.

Q: What is the model number of this SFTP CAT5E cable?

A: The model number of this cable is ITI-CT5SF-021.

Q: Where is this SFTP CAT5E cable manufactured?

A: This cable is manufactured in SHENZHEN.

Q: What is the maximum frequency this SFTP CAT5E cable can support?

A: This cable can support a maximum frequency of 100 MHz.

Q: What is the maximum length of this SFTP CAT5E cable?

A: The maximum length of this cable is 500 feet.
