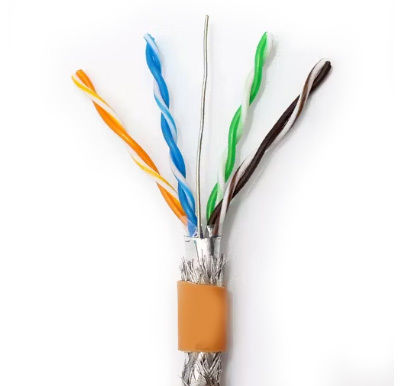

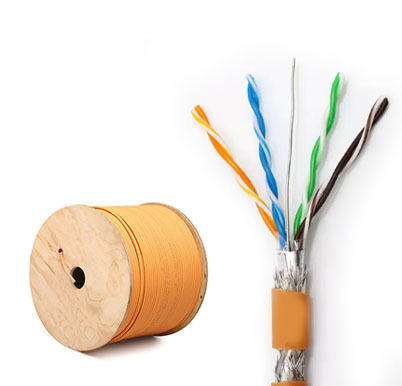

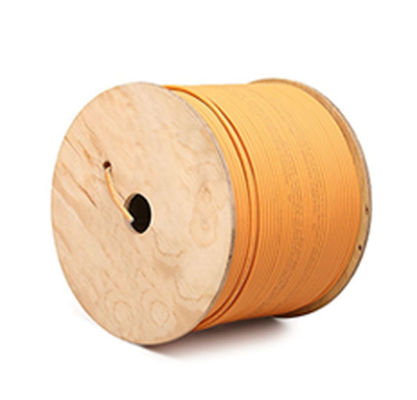

CAT5E SFTP LSZH Ethernet Cable 24AWG Orange Shielded Foiled Fire Safe LAN Cable

Name: CAT5E SFTP LSZH Ethernet Cable 24AWG Orange Shielded Foiled Fire Safe LAN Cable
Brand: Integrity Cable Co., Limited
SKU: ITI-CT5SF-025
Availability: InStock

Brand Name:	ITI-LINK
Model Number:	ITI-CT5SF-025
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Jacket Material:

PVC

Cable Shielding:

SFTP

Color:

Orange

Conductor Gauge:

24AWG

Conductor Amaterial:

Bare Copper

Connector Type:

RJ45

Shielding:

Foil

Data Transfer Rate:

100 Mbps

Packaging Details:

Color Box+Packing Box 28*28*12cm

Highlight:

CAT5E SFTP shielded Ethernet cable

LSZH fire safe LAN cable

24AWG orange shielded foiled cable

Product Description

CAT5E SFTP LSZH Ethernet Cable 24AWG Orange Shielded Foiled Fire Safe LAN Cable

The INTEGRITY ITI-CT5SF-025 CAT5E SFTP LSZH Ethernet Cable is a premium shielded foiled twisted pair LAN cable engineered for high-performance networking across industrial, commercial, and residential environments. With its 24AWG pure copper conductors, dual shielding design, and a durable orange LSZH jacket, this 500ft CAT5E SFTP LSZH cable provides unmatched reliability, safety, and flexibility for modern infrastructure.

Key Features

High-Speed Data Transmission - Delivers stable 100MHz bandwidth supporting gigabit Ethernet, VoIP, cloud computing, and video surveillance with minimal latency.
Shielded Foiled Twisted Pair (SFTP) Construction - Dual-layer shielding (foil + braid) ensures maximum protection against electromagnetic interference (EMI) and radio frequency interference (RFI), critical for noisy environments like server rooms and industrial sites.
LSZH Fire-Safe Jacket - The Low-Smoke Zero-Halogen orange jacket minimizes toxic emissions and smoke generation in case of fire, making it compliant with strict safety standards for schools, hospitals, and data centers.
Durable 24AWG Pure Copper Conductors - Ensures low signal loss over long distances, providing reliable gigabit connectivity for up to 500ft runs.
Industrial & Commercial Grade - Designed for data centers, telecom rooms, security monitoring, and manufacturing facilities, resistant to heat, abrasion, and environmental stress.
Future-Proof Networking Solution - Compatible with existing CAT5E infrastructure while offering enhanced shielding and safety features, ensuring compliance with evolving fire and building codes.
Easy Cable Management - The bright orange LSZH jacket makes installation, routing, and maintenance straightforward in complex wiring systems.
Eco-Friendly Design - Halogen-free composition reduces environmental impact while ensuring safe disposal and sustainability.
Versatile Applications - Ideal for enterprise IT networks, home gigabit internet setups, smart office solutions, and industrial automation systems.
Factory-Direct Reliability - Manufactured under strict quality standards, ensuring consistent performance for both wholesale distribution and large-scale installations.

Technical Parameters

Construction Item Description	Electrical Property
Conductor Material Bare Solid Copper (elongation: 19 ~ 24%)	Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG	Resistance unbalance within a pair ≤ 2%
Insulation Material HDPE 8303	Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V >1500 MΩ / 100m
OD 1.05 ± 0.02 mm	Mutual capacitance 5600 pF / 100m MAX
Average THK 0.24 mm	Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m

Transmission Properties

Frequency (MHz)	Attenuation (Max) (dB/100m)	Propagation Delay (MAX) (ns/100m)	Propagation Delay Skew (MAX) (ns/100m)	Return Loss (Min) (dB on 100m)	NEXT (Min) (dB on 100m)	PS NEXT (Min) (dB on 100m)	EL-FEXT (Min) (dB on 100m)	PS EL-FEXT (Min) (dB on 100m)
4	4.05	552	45	23.01	56.27	53.27	51.96	48.96
8	5.77	546.73	45	24.52	51.75	48.75	45.94	42.94
10	6.47	545.38	45	25	50.3	47.3	44	41
16	8.25	543	45	25	47.24	44.24	39.92	36.92
20	9.27	542.05	45	25	45.78	42.78	37.98	34.98

Applications

The INTEGRITY ITI-CT5SF-025 CAT5E SFTP LSZH cable is engineered for versatile deployment in environments where fire safety, EMI protection, and long-distance stability are critical.

Data Centers & Server Rooms - Provides stable gigabit Ethernet connections with SFTP shielding that reduces crosstalk and interference from dense electrical equipment.
Industrial & Manufacturing Facilities - Withstands noise from motors and generators, while the LSZH fire-safe jacket resists heat, abrasion, and chemical exposure.
Commercial Buildings & Campuses - Meets building code compliance with halogen-free LSZH material, suitable for schools, hospitals, and office networks.
Home Networking & Smart Office Setups - Ideal for 500ft structured cabling, supporting gigabit internet for PCs, routers, printers, smart TVs, and IoT devices.
Security & Surveillance Systems - Ensures uninterrupted video transmission for IP cameras, access control, and monitoring systems with low signal loss 24AWG conductors.
