| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6F-020 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

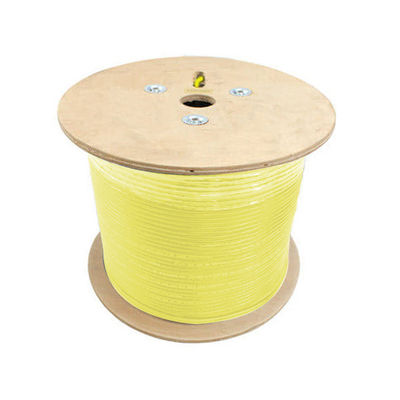

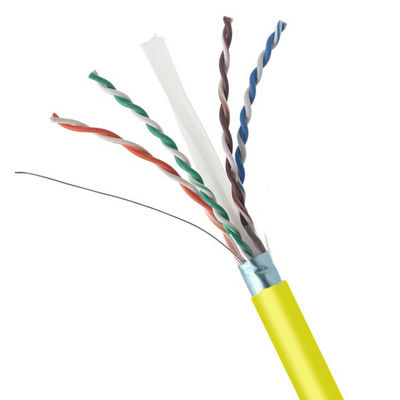

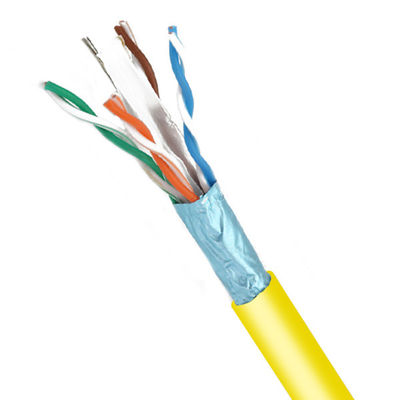

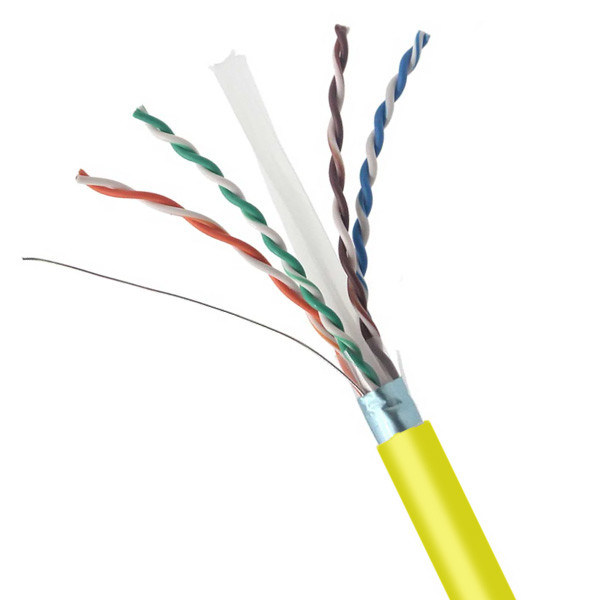

This Cat6 FTP 23AWG 250MHz Yellow LSZH Cable delivers fast and stable Ethernet connections, making it ideal for small to medium-sized networks. The yellow color provides easy identification and organization of network cables.
| Category | Cat6 |
|---|---|
| Conductor Material | Copper |
| Jacket Material | LSZH |
| Cable Type | FTP |
| Color | Yellow |
| Conductor Dimensions | 0.570±0.005 |
| Conductor Size | 23 AWG |
| Cable Length | 305 Meters |
| Property | Standard | Value |
|---|---|---|
| Conductor Resistance at 20°C | NF EN 50289-1-2 / IEC 60189-1 | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | NF EN 50289-1-2/ IEC 60708 | ≤ 5% |
| Dielectric Strength Test Voltage | NF EN 50289-1-3 / IEC 61196-1-105 | No breakdown |
| Insulation Resistance at 20°C | NF EN 50289-1-4 / IEC 60885-1 | >1500 MΩ / 100m |
| Mutual capacitance | NF EN 50289-1-5 /IEC 60189-1 | 5600pF / 100m MAX |
