| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6F-019 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
| Parameter | Value |
|---|---|
| Conductor Material | Copper |

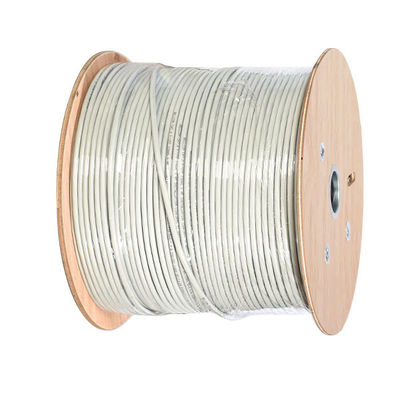

| Cable Length | 1000Ft |
| Conductor Dimensions | 0.560±0.005 |
| Color | White |
| Conductor Size | 23 AWG |
| Jacket Material | LSZH |
| Cable Type | FTP |
| Category | CAT6 |

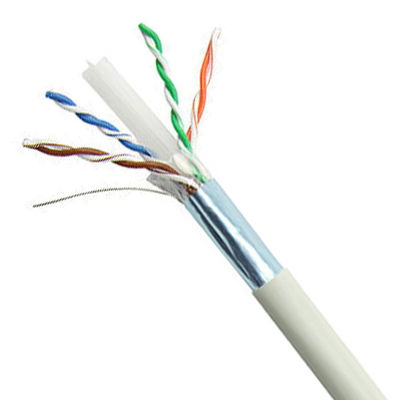

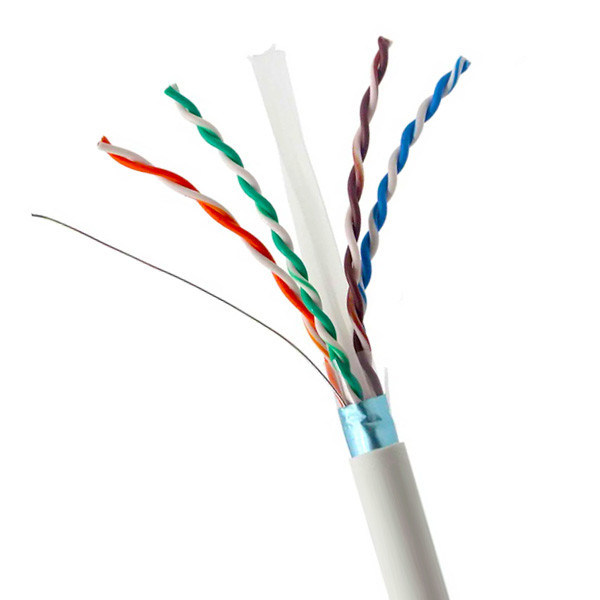

| Construction Item | Description |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Insulation Material | HDPE |
| Pair Colors | 1p: white + 2 blue stripes & blue 2p: white + 2 orange stripes & orange 3p: white + 2 green stripes & green 4p: white + 2 brown stripes & brown |
| Shield Construction | Polyester/Aluminium (PET/ALU) |
| Jacket Material | LSZH, 60P, -20~75℃ |
| Property | Value |
|---|---|
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 5% |
| Insulation Resistance | >1500 MΩ / 100m |
| Mutual capacitance | 5600pF / 100m MAX |
| Characteristic impedance at 100MHz | 100 ± 15 Ω |
| Frequency (MHz) | Attenuation (Max dB/100m) | Return Loss (Min dB) | NEXT (Min dB) |
|---|---|---|---|
| 4 | 3.78 | 45 | 66.27 |
| 8 | 5.32 | 45 | 61.75 |
| 100 | 19.8 | 20.11 | 45.3 |
| 250 | 32.85 | 17.32 | 39.33 |
