Cat6 FTP Gray 1000FT LSZH Network Cable 23AWG 250MHz Copper Conductor

Name: Cat6 FTP Gray 1000FT LSZH Network Cable 23AWG 250MHz Copper Conductor
Brand: Integrity Cable Co., Limited
SKU: ITI-CT6F-018
Availability: InStock

Brand Name:	ITI-LINK
Model Number:	ITI-CT6F-018
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	1500pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Jacket Material:

LSZH

Category:

Cat6

Conductor Size:

23 AWG

Cable Length:

305 Meters

Conductor Material:

Copper

Certificate:

UL, CSA, CPR ,ETL, TUV ,RCM, CE, RoHS

Color:

Gray

Cable Type:

FTP

Packaging Details:

Color Box+Packing Box 42*42*22cm

Highlight:

Cat6 lszh ethernet cable

1000FT lszh ethernet cable

250MHz ftp cat 6 outdoor

Product Description

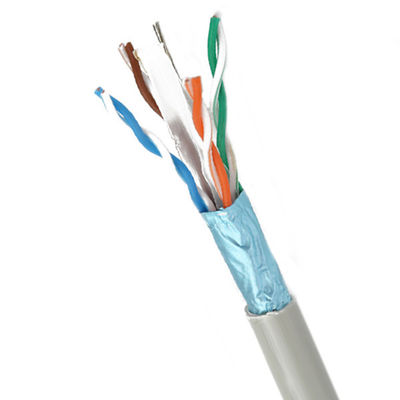

Cat6 FTP Gray 1000FT LSZH Network Cable 23AWG 250MHz Copper Conductor

Premium Cat6 FTP Network Cable with LSZH Jacket

This high-performance Cat6 FTP cable features a 23AWG copper conductor and LSZH (Low Smoke Zero Halogen) jacket, delivering reliable connectivity with enhanced safety features. The 305-meter length makes it ideal for large-scale installations in offices, data centers, and commercial environments.

Key Features

23AWG solid copper conductor for superior conductivity
LSZH jacket material for enhanced fire safety
Supports 10Gbps data transfer speeds
250MHz bandwidth for high-performance networking
FTP (Foiled Twisted Pair) design for reduced interference
Gray color for easy identification
305-meter length for large installations

Technical Specifications

Parameter	Value
Cable Type	CAT6 FTP LAN Cable
Conductor Size	23 AWG
Conductor Material	Copper
Jacket Material	LSZH
Color	Gray

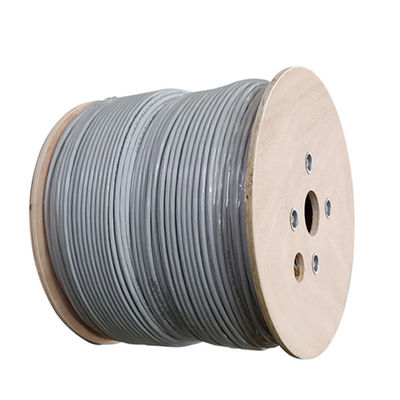

Cable Length	305 Meters
Maximum Speed	10Gbps
Bandwidth	250MHz

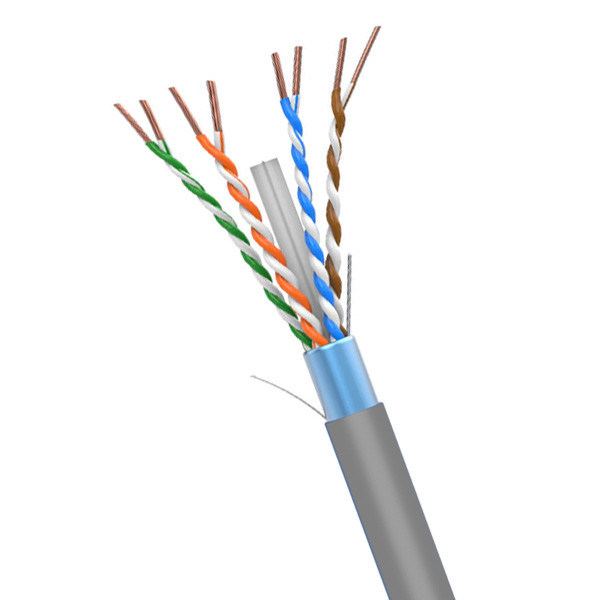

Construction Details

Component	Specification
Conductor	Bare Solid Copper (elongation: 19-24%)
Insulation	HDPE, OD: 1.15 ±0.01 mm
Pair Colors	White with blue/orange/green/brown stripes
Shield	Polyester/Aluminium (PET/ALU), Coverage ≥ 115%
Jacket	LSZH, OD: 7.2 ± 0.2 mm

Electrical Properties

Property	Value
Conductor Resistance at 20°C	≤ 9.5 Ω / 100m
Insulation Resistance	>1500 MΩ / 100m
Mutual Capacitance	5600pF / 100m MAX
Characteristic Impedance at 100MHz	100 ± 15 Ω

Applications

This Cat6 FTP cable is ideal for:

Data centers and server rooms
Office network installations
Commercial buildings
Educational institutions
Healthcare facilities
Industrial environments (indoor use only)

Frequently Asked Questions

Q: What is the brand name of this product?

A: The brand name of this product is ITI-LINK.

Q: What is the model number of this product?

A: The model number of this product is ITI-CT6F-018.

Q: Where is this product manufactured?

A: This product is manufactured in SHENZHEN.

Q: What is the maximum transmission speed of this CAT6 cable?

A: This CAT6 cable can support up to 10Gbps transmission speed.

Q: Is this CAT6 cable suitable for outdoor use?

A: No, this CAT6 cable is not suitable for outdoor use as it is not weatherproof.
