| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6F-015 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
| Parameter | Value |
|---|---|

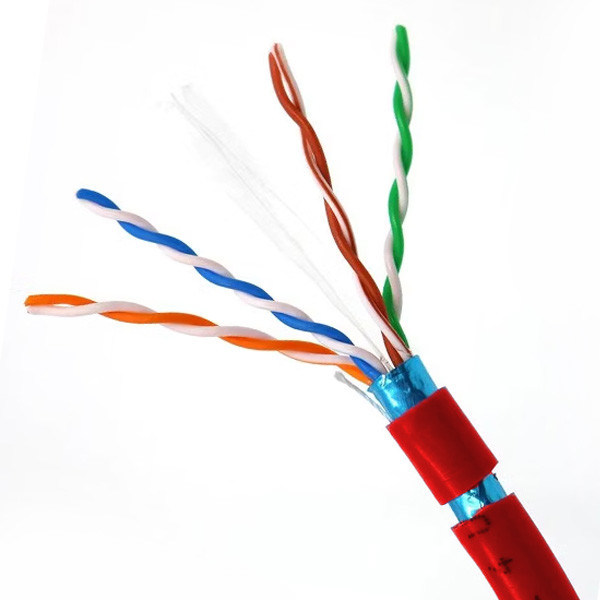

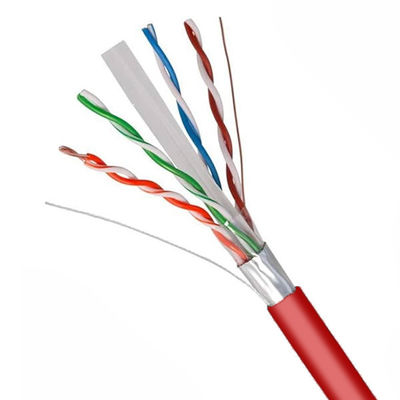

| Cable Type | FTP |
| Category | Networking Cables |
| Jacket Material | LSZH |
| Conductor Material | Copper |
| Conductor Size | 23 AWG |

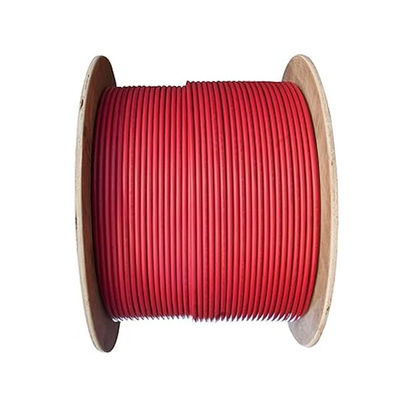

| Cable Length | 305 Meters |
| Color | Red |
| Conductor Dimensions | 0.550±0.005mm |
| Property | Value |
|---|---|
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 2% |
| Insulation Resistance at 20°C | >1500 MΩ / 100m |
| Mutual capacitance | 5600 pF / 100m MAX |
| Capacitance unbalance pair to ground | ≤ 160 pF / 100m |
| Characteristic impedance at 100MHz | 100 ± 15 Ω |
