| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6F-014 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
| Parameter | Value |
|---|---|

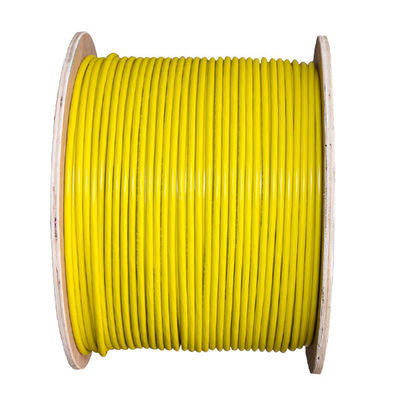

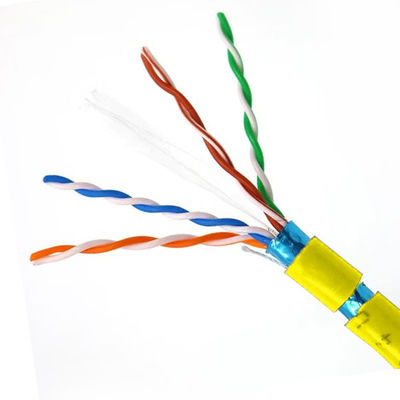

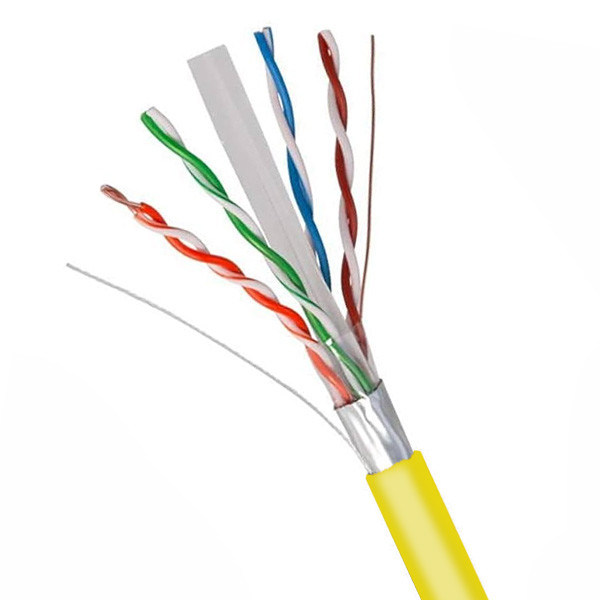

| Product Name | Cat6 FTP 23AWG Bare Copper PVC Cable with Durable Yellow Jacket 1000Ft |
| Jacket Material | PVC |
| Cable Length | 1000Ft |
| Conductor Size | 23 AWG |
| Conductor Material | Copper |
| Cable Type | FTP |
| Conductor Dimensions | 0.570±0.005 |
| Category | Networking Cables |
| Color | Yellow |
| Property | Standard | Value |
|---|---|---|
| Conductor Resistance at 20°C | NF EN 50289-1-2 / IEC 60189-1 | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | NF EN 50289-1-2/ IEC 60708 | ≤ 2% |
| Dielectric Strength Test Voltage | NF EN 50289-1-3 / IEC 61196-1-105 | No breakdown |
| Insulation Resistance | NF EN 50289-1-4 / IEC 60885-1 | >1500 MΩ / 100m |
| Mutual capacitance | NF EN 50289-1-5 /IEC 60189-1 | 5600pF / 100m MAX |
| Capacitance unbalance pair to ground | NF EN 50289-1-5 / IEC 60189-1 | ≤ 160 pF / 100m |
| Characteristic impedance at 100MHz | NF EN 50289-1-11/ IEC 61156-1 | 100 ± 15 Ω |
