| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6F-012 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

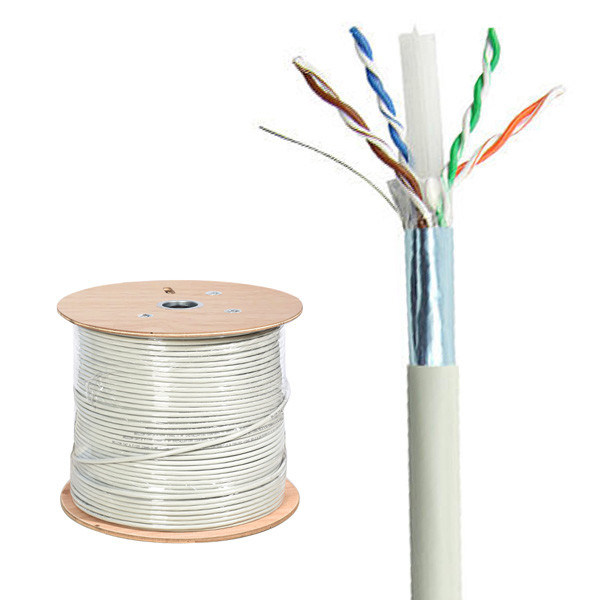

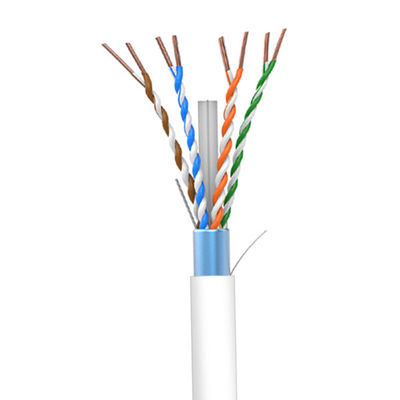

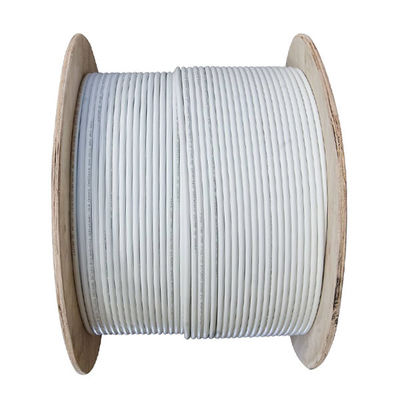

The Cat6 FTP 23AWG Ethernet Cable with white PVC jacket delivers reliable high-speed networking performance in a clean, professional design. This 1000-foot shielded cable features durable construction for demanding installations in data centers, offices, and industrial environments.
| Color | White |
|---|---|
| Conductor Size | 23 AWG |
| Category | Networking Cables |
| Cable Type | FTP LAN Cable |
| Cable Length | 1000Ft |
| Jacket Material | PVC |
| Conductor Material | Copper |
| Conductor Dimensions | 0.550±0.005mm |
| Construction Item | Description |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Insulation Material | HDPE |
| Shield Construction | Polyester/Aluminium (PET/ALU) with ≥115% coverage |
| Jacket Material | PVC, 50P, -20~75℃ |
| Property | Value |
|---|---|
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 2% |
| Insulation Resistance | >1500 MΩ / 100m |
| Mutual capacitance | 5600pF / 100m MAX |
| Characteristic impedance at 100MHz | 100 ± 15 Ω |
