Industrial 23AWG SFTP CAT6 LSZH Cable 500ft Automation Cable Ethernet Sftp Cat 6

Name: Industrial 23AWG SFTP CAT6 LSZH Cable 500ft Automation Cable Ethernet Sftp Cat 6
Brand: Integrity Cable Co., Limited
SKU: ITI-CT6SF-012
Availability: InStock

Brand Name:	ITI -LINK
Model Number:	ITI-CT6SF-012
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Cable Type:

CAT6

Maximum Frequency:

250MHz

Maximum Data Rate:

10Gbps

Maximum Transmission Distance:

500 Feet

Conductor Size:

23AWG

Color:

Blue

Conductor Material:

Copper

Shielding Type:

SFTP

Packaging Details:

Inner box size: 32 cm (length) × 32 cm (width) × 18.5 cm (height) Outer box size (for packing): 39 cm (length) × 33.5 cm (width) × 34 cm (height)

Highlight:

Industrial Automation SFTP CAT6 LSZH Cable

Enterprise Network SFTP CAT6 LSZH Cable

Automation cable ethernet sftp cat 6

Product Description

Industrial 23AWG SFTP CAT6 LSZH Cable 500ft Automation Cable Ethernet SFTP Cat 6

Bulk SFTP CAT6 LSZH Cable 23AWG 500ft for Industrial Automation Enterprise Networks

The ITI-LINK ITI-CT6SF-012 SFTP CAT6 cable is a premium networking solution designed specifically for large-scale industrial automation and enterprise network projects. Sold in convenient 500-foot bulk boxes, this cable features a blue Low Smoke Zero Halogen (LSZH) jacket, 23AWG conductors, and advanced SFTP shielding.

Key Features

Crafted with high-purity oxygen-free copper conductors for superior data transfer performance
23AWG conductor size balances robust signal strength with flexibility
Supports data transmission at speeds up to 10Gbps with minimal signal loss
Maximum frequency of 250MHz for demanding data transfer tasks
Blue LSZH jacket provides physical protection and emits minimal smoke in fire situations
SFTP (Shielded Foil Twisted Pair) shielding combats electromagnetic interference

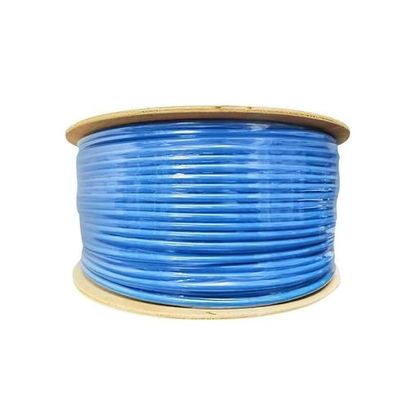

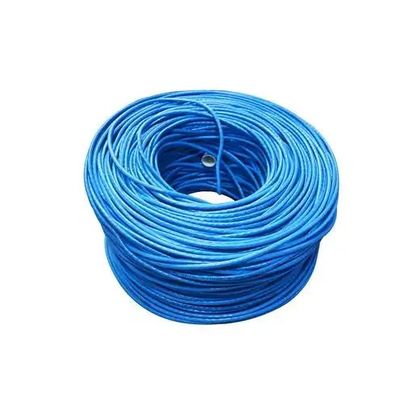

Convenient 500-foot bulk packaging for large-scale installations

Technical Specifications

Cable Type	CAT6 SFTP Cable
Maximum Frequency	250MHz
Shielding Type	SFTP
Maximum Data Rate	10 Gbps
Conductor Material	Copper
Jacket Material	LSZH
Conductor Size	23AWG

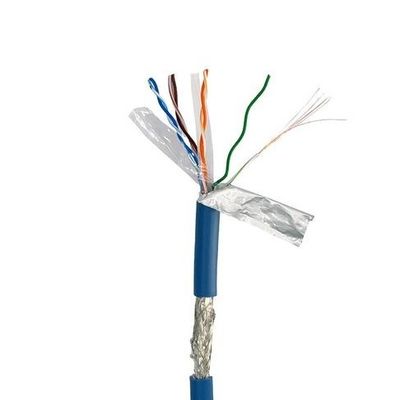

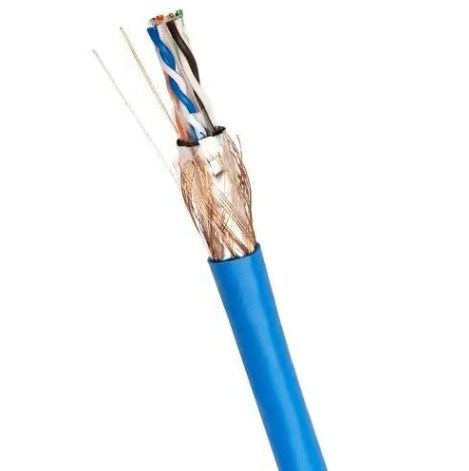

Detailed Construction

Construction Item	Description
Conductor Material	Bare Solid Copper (elongation: 19-24%)
Conductor Size	23 AWG
Insulation Material	HDPE
Insulation OD	1.14 ±0.05 mm
Pair Colors	1p: white + 2 blue stripes & blue 2p: white + 2 orange stripes & orange 3p: white + 2 green stripes & green 4p: white + 2 brown stripes & brown
Shield Construction	Polyester/Aluminium (PET/ALU)
Jacket Material	LSZH, 60P, -20~75℃
Jacket OD	7.2 ± 0.2

Transmission Properties

Frequency (MHz)	Attenuation (Max dB/100m)	Propagation Delay (MAX ns/100m)	Return Loss (Min dB)	NEXT (Min dB)
4	3.78	552	45	66.27
10	5.95	545.38	25	60.3
100	19.8	537.6	20.11	45.3
250	32.85	536.28	17.32	39.33

Applications

Industrial automation systems
Enterprise network infrastructure
Data center connectivity
Real-time monitoring systems
Robotic control networks
High-speed data analytics
Smart factory implementations

Frequently Asked Questions

Q: What is the brand of this SFTP CAT6 Cable?

A: The brand of this cable is ITI-LINK.

Q: What is the model number of this SFTP CAT6 Cable?

A: The model number of this cable is ITI-CT6SF-012.

Q: Where is this SFTP CAT6 Cable manufactured?

A: This cable is manufactured in SHENZHEN.

Q: What type of cable is ITI-CT6SF-012?

A: ITI-CT6SF-012 is an SFTP CAT6 Cable, which provides excellent shielding against electromagnetic interference.

Q: What is the length of the ITI-LINK SFTP CAT6 Cable?

A: The length of this cable is standard 500 feet.
