| Brand Name: | ITI -LINK |
| Model Number: | ITI-CT6SF-017 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
| Construction Item Description | Electrical Property |
|---|---|

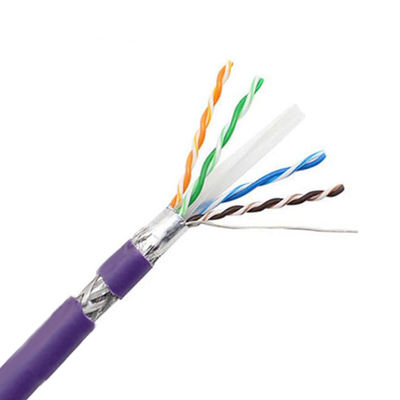

| Conductor Material: Bare Solid Copper (elongation: 19-24%) OD: 23 AWG |
Conductor Resistance at 20°C: ≤ 9.5 Ω / 100m Resistance unbalance within a pair: ≤ 2% |
| Insulation Material: HDPE OD: 1.14 ±0.05 mm Average THK: 0.24 mm Color: 1p: white + 2 blue stripes & blue, 2p: white + 2 orange stripes & orange, 3p: white + 2 green stripes & green, 4p: white + 2 brown stripes & brown |
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V: >1500 MΩ / 100m Mutual capacitance: 5600 pF / 100m MAX Capacitance unbalance pair to ground at 800Hz or 1 kHz: ≤ 160 pF / 100m |
| Pair Twist Lay & Direction: 1p: S=19.0 mm (27%), 2p: S=23.5 mm (35%), 3p: S=21.5 mm (31%), 4p: S=27.0 mm (40%) |
Characteristic impedance at 100MHz: 100 ± 15 Ω Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min No breakdown |
| Shield Construction: Polyester/Aluminium (PET/ALU) Coverage: ≥ 115% |
Spark Test: 2000 ± 250VOC |
| Jacket Material: LSZH, 60P, -20~75℃ Hardness: 81± 3 OD: 7.2 ± 0.2 Average THK: 0.55 ~ 0.60 Color: according to the customer's requirements |
