1000FT CAT7 SFTP 23AWG LSZH Green Jacket Ethernet Cable For 10Gbps 600MHz

Name: 1000FT CAT7 SFTP 23AWG LSZH Green Jacket Ethernet Cable For 10Gbps 600MHz
Brand: Integrity Cable Co., Limited
SKU: ITI-CT7SF-010
Availability: InStock

Brand Name:	ITI-LINK
Model Number:	ITI-CT7SF-010
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	1000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Conductor Size:

23AWG

Jacket Color:

Green

Jacket Material:

LSZH

Length:

1000ft

Cable Type:

CAT7

Frequency:

600MHz

Conductor Material:

Copper

Shielding Type:

SFTP

Packaging Details:

Wooden shaft packaging 40*26*20cm Outer box size：42*42*22cm

Highlight:

1000FT green ethernet cable

23AWG green ethernet cable

600MHz green internet cable

Product Description

1000FT CAT7 SFTP 23AWG LSZH Green Jacket Ethernet Cable For 10Gbps 600MHz

Premium CAT7 Ethernet Cable with Superior Shielding

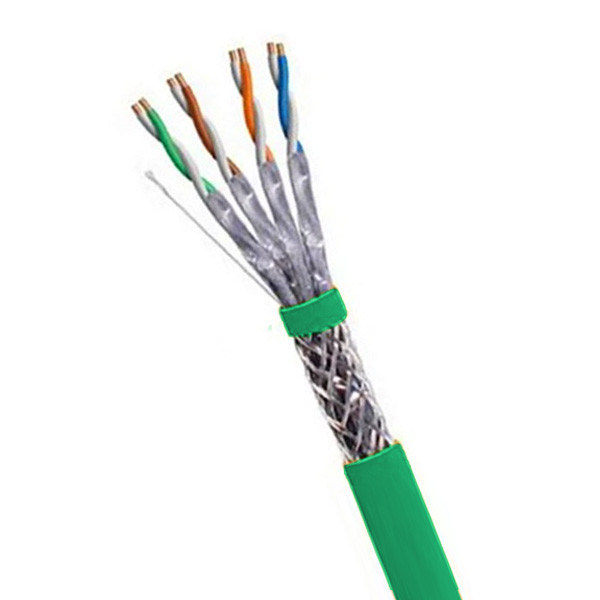

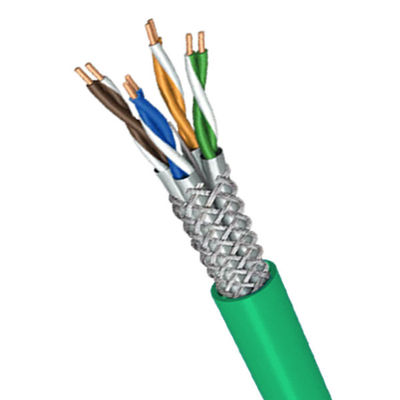

This high-performance CAT7 SFTP 23AWG LSZH Ethernet Cable features four individually shielded twisted pairs with an overall shield (SFTP construction), providing exceptional protection against electromagnetic interference (EMI) and radio frequency interference (RFI). The double-layer shielding ensures maximum signal integrity and minimal crosstalk for reliable 10Gbps data transmission.

Key Features

SFTP Shielding: Individual pair shielding plus overall braid for superior EMI/RFI protection
23AWG Solid Copper Conductors: High conductivity with minimal signal loss over long distances
LSZH Green Jacket: Low Smoke Zero Halogen material for safety in sensitive environments
600MHz Frequency Rating: Supports high-speed data transfer up to 10Gbps

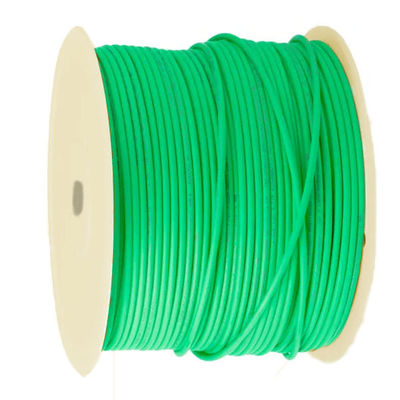

1000ft Length: Ideal for large-scale network installations

Technical Specifications

Cable Type:

CAT7

Jacket Material:

LSZH

Frequency:

600MHz

Conductor Size:

23AWG

Conductor Material:

Copper

Shielding Type:

SFTP

Length:

1000ft

Jacket Color:

Green

Electrical Properties

Property	Standard	Value
Conductor Resistance at 20°C	NF EN 50289-1-2 / IEC 60189-1	≤ 9.5 Ω / 100m
Resistance unbalance within a pair	NF EN 50289-1-2/ IEC 60708	≤ 2%
Dielectric Strength Test Voltage	NF EN 50289-1-3 / IEC 61196-1-105	No breakdown
Insulation Resistance at 20°C	NF EN 50289-1-4 / IEC 60885-1	>1500 MΩ / 100m
Mutual capacitance	NF EN 50289-1-5 /IEC 60189-1	5600pF / 100m MAX

Applications

This high-performance CAT7 cable is ideal for:

Data centers requiring high-speed 10Gbps connections
Enterprise network backbones
Industrial environments with EMI concerns
High-bandwidth applications like video streaming and large file transfers
Areas requiring fire-safe LSZH cabling

Frequently Asked Questions

Q: What is the brand name of this SFTP CAT7 cable?

A: The brand name of this SFTP CAT7 cable is ITI-LINK.

Q: What is the model number of this SFTP CAT7 cable?

A: The model number of this SFTP CAT7 cable is ITI-CT7SF-010.

Q: Where is this SFTP CAT7 cable manufactured?

A: This SFTP CAT7 cable is manufactured in SHENZHEN.

Q: What is the length of this SFTP CAT7 cable?

A: The length of this SFTP CAT7 cable is 1000Ft.
