| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT7SF-001 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

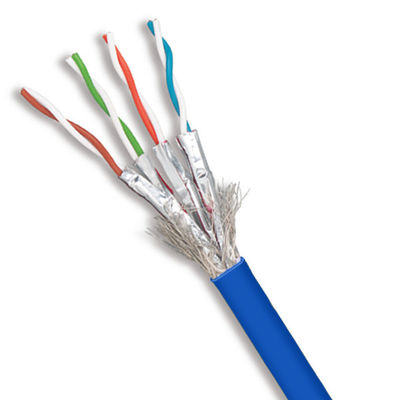

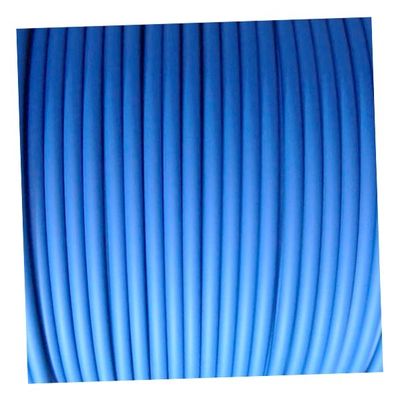

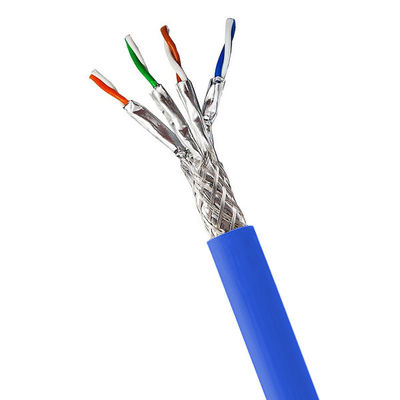

The CAT7 23AWG SFTP LSZH Blue Cable with Shielding for Secure 6000MHz Data is an outstanding networking solution featuring a durable LSZH (Low Smoke Zero Halogen) jacket in blue color. The LSZH jacket provides excellent protection while enhancing safety by reducing smoke and toxic gas emissions in case of fire.
| Parameter | Value |
|---|---|
| Jacket Color | Blue |
| Jacket Material | LSZH |
| Conductor Size | 23AWG (0.585mm) |
| Cable Type | CAT7 |
| Conductor Material | Copper |
| Shielding Type | SFTP |
| Frequency | 600MHz |
| Length | 1000Ft |
| Component | Specification |
|---|---|
| Conductor | 23 AWG Bare Solid Copper (elongation: 19-24%) |
| Insulation | PE Skin-Foam-Skin, 1.33 ±0.01 mm OD |
| Pair Colors | 1p: blue stripe + white + blue stripe & blue 2p: orange stripe + white + orange stripe & orange 3p: green stripe + white + green stripe & green 4p: brown stripe + white + brown stripe & brown |
| Pair Twist | Variable lay lengths from 19.0mm to 25.0mm |
| Shielding | Polyester/Aluminium (PET/ALU) pair shield (≥115% coverage) Aluminum-magnesium braid (≥40% coverage) |
| Jacket | LSZH, 60P, -20~75℃, 8.1 ± 0.2mm OD |
| Frequency (MHz) | Attenuation (Max dB/100m) | Propagation Delay (Max ns/100m) | Return Loss (Min dB) | NEXT (Min dB) |
|---|---|---|---|---|
| 4 | 3.74 | 552 | 25 | 78.0 |
| 100 | 19.20 | 538 | 20.10 | 72.40 |
| 600 | 50.10 | 536 | 17.30 | 60.70 |
| 1000 | 66.93 | 535 | 17.10 | 57.40 |
