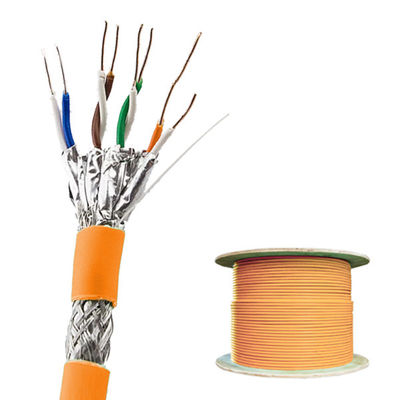

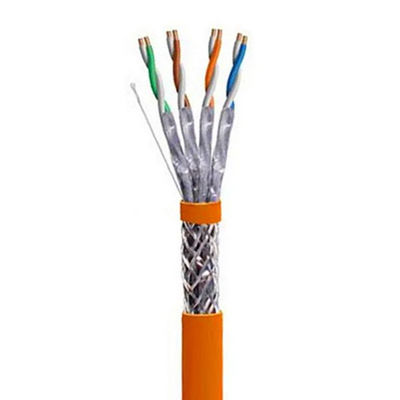

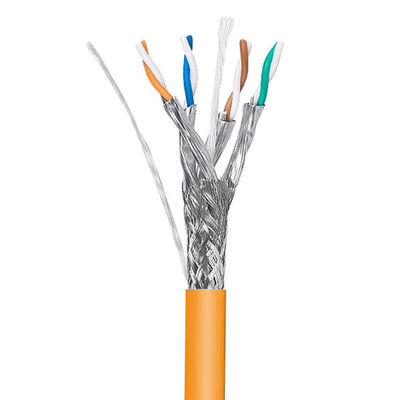

| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT7SF-005 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs/day |
| Construction Item | Description |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Conductor Size | 23 AWG |
| Insulation Material | PE Skin-Foam-Skin |
| Insulation OD | 1.33 ±0.01 mm |
| Pair Colors | 1p: white + 2 blue stripes & blue 2p: white + 2 orange stripes & orange 3p: white + 2 green stripes & green 4p: white + 2 brown stripes & brown |
| Pair Shield | Polyester/Aluminium (PET/ALU), Coverage ≥ 115% |
| Braid | ɸ 0.12mm Aluminum-magnesium braided, Coverage ≥ 40% |
| Jacket Material | PVC, 60P, -20~75℃ |
| Jacket OD | 8.1 ± 0.2 |
| Property | Standard | Value |
|---|---|---|
| Conductor Resistance at 20°C | NF EN 50289-1-2 / IEC 60189-1 | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | NF EN 50289-1-2/ IEC 60708 | ≤ 2% |
| Dielectric Strength Test Voltage | NF EN 50289-1-3 / IEC 61196-1-105 | No breakdown |
| Insulation Resistance at 20°C | NF EN 50289-1-4 / IEC 60885-1 | >1500 MΩ / 100m |
| Mutual capacitance | NF EN 50289-1-5 /IEC 60189-1 | 5600pF / 100m MAX |
| Capacitance unbalance pair to ground | NF EN 50289-1-5 / IEC 60189-1 | ≤ 160 pF / 100m |
| Characteristic impedance at 100MHz | NF EN 50289-1-11/ IEC 61156-1 | 100 ± 15 Ω |
| Spark Test | UL444 | 2000 ± 250VOC |
| No. | Frequency (MHz) | Attenuation (Max) dB/100m | Propagation Delay (Max) ns/100m | Return Loss (Min) dB | NEXT (Min) dB |
|---|---|---|---|---|---|
| 1 | 4 | 3.74 | 552 | 23.00 | 78.0 |
| 2 | 8 | 5.24 | 547 | 24.50 | 78.0 |
| 3 | 10 | 5.86 | 545 | 25.00 | 78.0 |
| 4 | 16 | 7.41 | 543 | 25.00 | 78.0 |
| 5 | 20 | 8.29 | 542 | 25.00 | 78.0 |
| 6 | 25 | 9.29 | 541 | 24.30 | 78.0 |
| 7 | 31.25 | 10.41 | 540 | 23.60 | 78.0 |
| 8 | 62.5 | 14.88 | 539 | 21.50 | 75.50 |
| 9 | 100 | 19.20 | 538 | 20.10 | 72.40 |
| 10 | 150 | 23.56 | 537 | 18.90 | 69.80 |
| 11 | 200 | 27.74 | 536 | 18.00 | 67.80 |
| 12 | 250 | 30.97 | 536 | 17.30 | 66.40 |
| 13 | 300 | 34.19 | 536 | 17.30 | 65.20 |
| 14 | 600 | 50.10 | 536 | 17.30 | 60.70 |
