| Brand Name: | ITI -LINK |
| Model Number: | ITI-CTSF8-013 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
| Attribute | Value |
|---|---|
| Conductor Size | 22 AWG |
| Data Transfer Speed | 40 Gbps |
| Conductor Material | Copper |

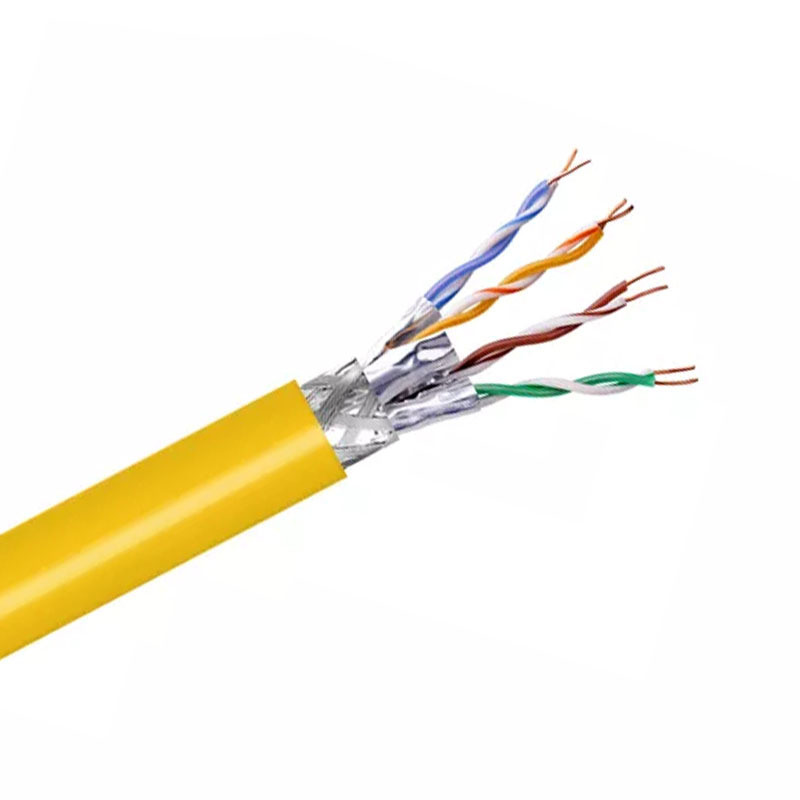

| Cable Type | SFTP (Shielded Foiled Twisted Pair) |
| Jacket Material | PVC |
| Frequency | 2000 MHz |
| Length | 100 Meters |
| Category | CAT8 |
| Construction Item | Description | Electrical Property | Value |
|---|---|---|---|
| Conductor | Material: Bare Solid Copper (elongation: 19-24%) | Conductor Resistance at 20°C | ≤ 5.6 Ω / 100m |
| OD: 22 AWG | Resistance unbalance within a pair | ≤ 0.2% | |
| Insulation | Material: PE Skin-Foam-Skin | Insulation Resistance at 20°C | >1500 MΩ / 100m |
| OD: 1.62 ±0.01 mm | Mutual capacitance | 5600 pF / 100m MAX | |
| Average THK: 0.50 mm | Capacitance unbalance pair to ground | ≤ 160 pF / 100m | |
| Color: White with colored stripes | Characteristic impedance at 100MHz | 100 ± 15 Ω |
| Frequency (MHz) | Insertion Loss (db) | NEXT (db) | Return Loss (db) | PSNEXT (db) | ACRF (db) | PSACRF (db) | TCL (db) | ELTCTL (db) |
|---|---|---|---|---|---|---|---|---|
| 1 | 3.0 | 73.5 | 19.1 | 62.0 | 72.4 | 69.4 | 40.0 | 46.8 |
| 2000 | 26.2 | 9.8 | 8.0 | 6.0 | 6.4 | 3.4 | 3.0 | 3.0 |
