| Brand Name: | ITI-LINK |
| Model Number: | ITI-CTSF8-014 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs/day |

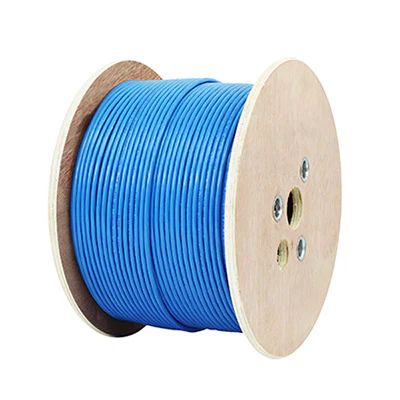

| Length | 1000Ft |
| Category | CAT8 |
| Color | Blue |

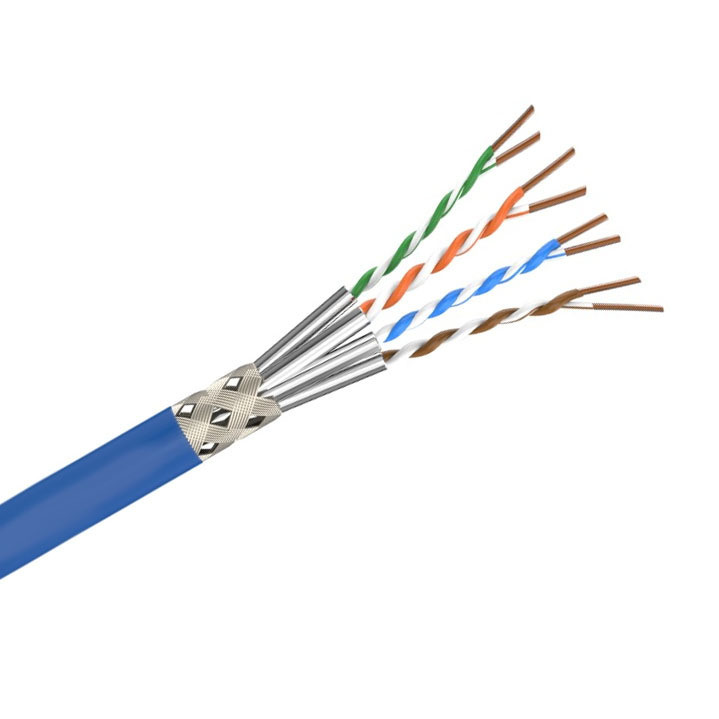

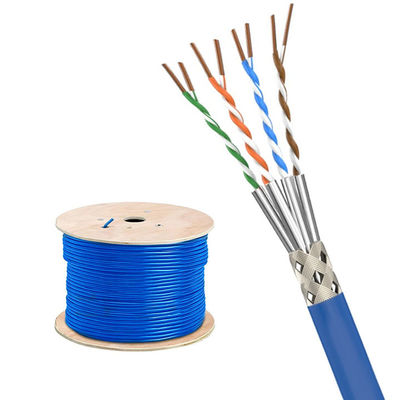

| Cable Type | SFTP |
| Frequency | 2000MHz |
| Conductor Size | 22AWG |
| Jacket Material | PVC |
| Construction Item Description | Electrical Property |
|---|---|
|
Conductor Material: Bare Solid Copper (elongation: 19-24%) OD: 22 AWG |
Conductor Resistance at 20°C: ≤ 5.6 Ω / 100m Resistance unbalance within a pair: ≤ 0.2% |
|
Insulation Material: PE Skin-Foam-Skin OD: 1.62 ±0.01 mm Average THK: 0.50 mm |
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V: >1500 MΩ / 100m Mutual capacitance: 5600 pF / 100m MAX Capacitance unbalance pair to ground at 800Hz or 1 kHz: ≤ 160 pF / 100m |
|
Pair Twist Lay & Direction: Various specifications |
Characteristic impedance at 100MHz: 100 ± 15 Ω Dielectric Strength Test Voltage: 1.00KV DC or 0.7 KV AC for 1 min (No breakdown) |
| Frequency (MHz) | Insertion loss (db) | NEXT (db) | Return loss (db) | PSNEXT (db) | ACRF (db) | PSACRF (db) |
|---|---|---|---|---|---|---|
| 1 | 3.0 | 73.5 | 19.1 | 62.0 | 72.4 | 69.4 |
| 2000 | 26.2 | 9.8 | 8.0 | 6.0 | 6.4 | 3.4 |
