Cat5e SFTP 24AWG Extend To 350MHz 1000FT Solid Network PVC PE Cable

Name: Cat5e SFTP 24AWG Extend To 350MHz 1000FT Solid Network PVC PE Cable
Brand: Integrity Cable Co., Limited
SKU: ITI-CT5SF-002
Availability: InStock

Brand Name:	ITI-LINK
Model Number:	ITI-CT5SF-002
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Data Transfer Rate:

100 Mbps

Length:

1000 Ft

Jacket Material:

PVC/PE

Frequency:

100 MHz

Cable Type:

SFTP

Conductor Size:

24 AWG

Certifications:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Conductor AMaterial:

Bare Copper

Packaging Details:

Color Box+Packing Box 38*38*24cm

Highlight:

24AWG pe pvc cable

350MHz pe pvc cable

1000FT cat5e sftp

Product Description

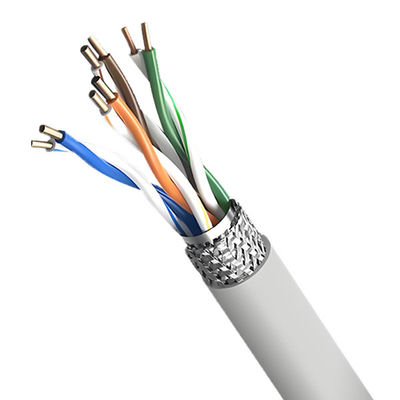

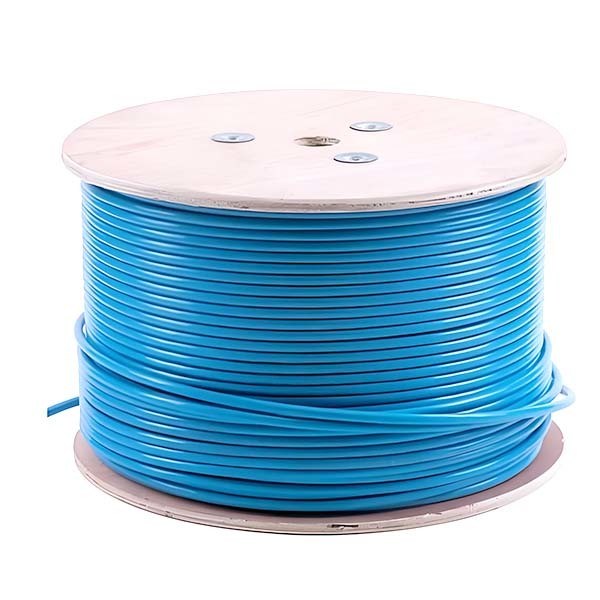

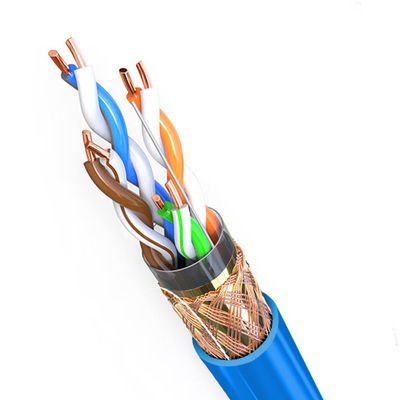

Cat5e SFTP 24AWG Extend To 350MHz 1000FT Solid Network PVC PE Cable

Product Overview

Cat5e SFTP 24AWG network cable provides a bandwidth of 100MHz within 90 meters, with typical application rates of 100Mbps. Designed for shielded confidential systems with high electromagnetic interference requirements, this cable is ideal for indoor horizontal work area wiring and local area network installations.

Key Features

High-quality oxygen-free copper conductors for reliable electrical transmission
Dual shielding: 0.06mm aluminum foil + tinned copper braid (25dB improved interference resistance)
Compliant with ANSI/TIA-568-B.2 & ISO/IEC 11801 standards
RoHS/REAC compliant PVC/PE jacket
Operating temperature: -30℃ to +75℃
Certifications: CE, RoHS, TUV, UL, CPR, ETL, RCM, ISO9001

Technical Specifications

Construction	Electrical Properties
Conductor: Bare Solid Copper (24 AWG)	Conductor Resistance: ≤ 9.5 Ω/100m
Insulation: HDPE 8303 (0.90 ± 0.02mm)	Insulation Resistance: >1500 MΩ/100m
Shielding: PET/ALU Foil + Tinned Copper Braid	Characteristic Impedance: 100 ± 15 Ω
Jacket: PVC, 50P (-20~75℃)	Dielectric Strength: 1.00KV DC/0.7KV AC

Transmission Properties

Frequency (MHz)	Attenuation (dB/100m)	Propagation Delay (ns/100m)	NEXT (dB)
1	4.05	552	56.27
10	6.47	545.38	50.30
100	21.98	537.60	35.30

Installation Guidelines

Inspect products carefully upon opening packaging
Follow wiring standards strictly - avoid excessive bending
Use T568B or T568A standards for RJ45 connectors
Maintain maximum 100m cable length for optimal performance
Ensure proper grounding for shielded cables

Applications

Enterprise data centers and server rooms
Industrial Ethernet applications
Security monitoring systems
Smart home and building automation
High-quality audio/video transmission

Frequently Asked Questions

Q1. Can I order samples of LAN cables?

A: Yes, we welcome sample orders to test and check quality.

Q2. What about the lead time?

A: 3-5 days for sample preparation, 8-10 working days for mass production.

Q3. Do you have minimum order quantity?

A: Low MOQ - 1pc sample available for quality checking.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 10-year warranty on our products.
