| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5SF-017 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

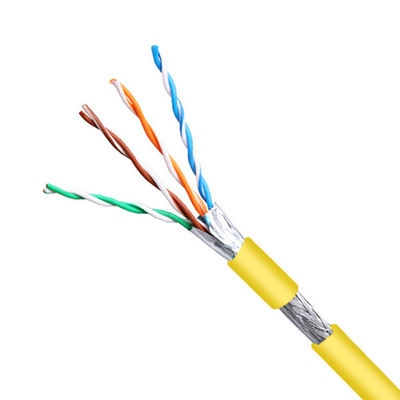

The Cat5e SFTP 24AWG Copper 500Ft Yellow PVC Jacket Shielded Ethernet Cable delivers reliable network performance for home and office networks, data centers, and server rooms. Rated for frequencies up to 100MHz, this cable handles high-traffic networks with ease.
| Parameter | Value |
|---|---|
| Cable Type | CAT5E |
| Cable Length | 500FT (152.4m) |
| Conductor Gauge | 24 AWG |
| Conductor Material | Copper |
| Cable Shielding | SFTP |
| Jacket Material | PVC |
| Jacket Color | Yellow |
| Frequency | 100MHz |

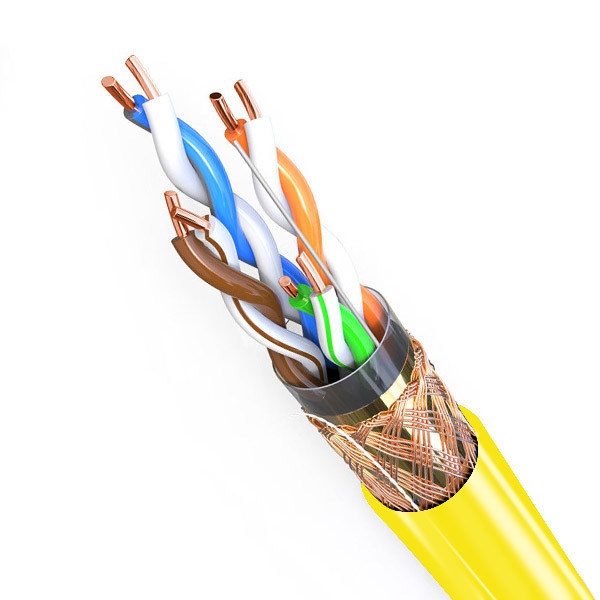

| Component | Specification |
|---|---|
| Conductor | Bare Solid Copper (elongation: 19-24%) |
| Insulation | HDPE 8303 (0.90 ± 0.02 mm OD) |
| Pair Twist | Variable lay lengths (15.5-22.0 mm) |
| Shielding | Polyester film/Aluminium Foil (PET/ALU) ≥115% coverage |
| Jacket | PVC, 50P, -20~75℃ (6.5 ± 0.2 mm OD) |
| Property | Value |
|---|---|
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 2% |
| Insulation Resistance | >1500 MΩ / 100m |
| Mutual capacitance | 5600pF / 100m MAX |
| Characteristic impedance at 100MHz | 100 ± 15 Ω |
| Frequency (MHz) | Attenuation (Max dB/100m) | NEXT (Min dB) |
|---|---|---|
| 4 | 4.05 | 56.27 |
| 10 | 6.47 | 50.30 |
| 20 | 9.27 | 45.78 |
| 50 | 15.07 | 39.82 |
| 100 | 21.98 | 35.30 |
This high-performance Ethernet cable is ideal for:

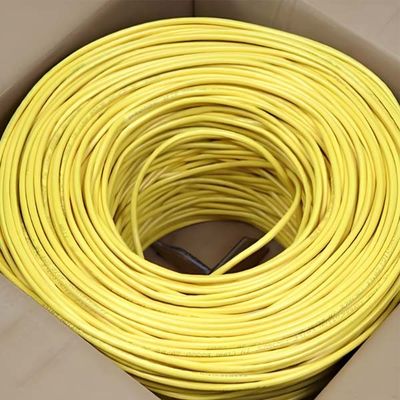

The cable ships in standard packaging (28×28×12cm) with estimated delivery in 15-45 business days. Expedited shipping options are available. Customers receive tracking information for all shipments.
This product comes with a 10-year warranty for your peace of mind.
