| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5SF-015 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
| Jacket Color | Green |
| Conductor Material | Copper |
| Conductor Gauge | 24 AWG |
| Cable Shielding | SFTP |

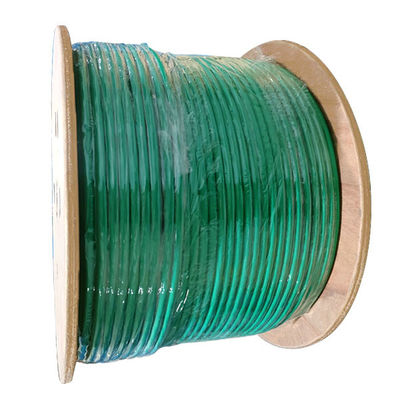

| Cable Length | 500Ft |
| Jacket Material | PVC |
| Cable Type | CAT5E |
| Frequency | 100MHz |
| Construction Item | Description |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Insulation Material | HDPE 8303 |

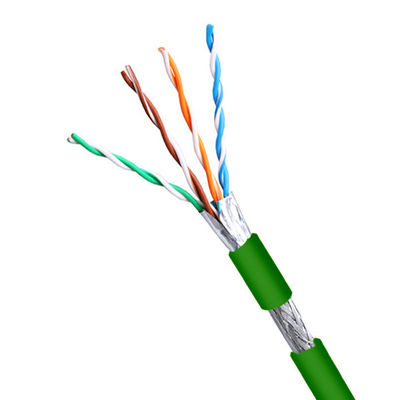

| Pair Colors | 1p: white+blue stripes, 2p: white+orange stripes, 3p: white+green stripes, 4p: white+brown stripes |

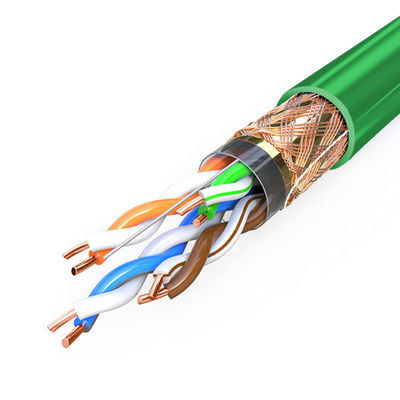

| Outside Shield | Polyester film/Aluminium Foil (PET/ALU) with ≥115% coverage |
| Jacket Material | LSZH, 60P, -20°C to 75°C |
| Property | Value |
|---|---|
| Conductor Resistance at 20°C | ≤ 9.5 Ω/100m |
| Resistance unbalance within a pair | ≤ 2% |
| Insulation Resistance | >1500 MΩ/100m |
| Mutual capacitance | 5600 pF/100m MAX |
| Characteristic impedance at 100MHz | 100 ± 15 Ω |
| Frequency (MHz) | Attenuation (Max dB/100m) | NEXT (Min dB) |
|---|---|---|
| 4 | 4.05 | 56.27 |
| 10 | 6.47 | 50.30 |
| 20 | 9.27 | 45.78 |
| 100 | 21.98 | 35.30 |
