| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5SF-009 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
| Parameter | Value |
|---|---|

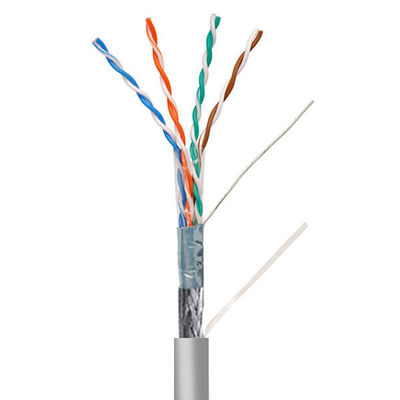

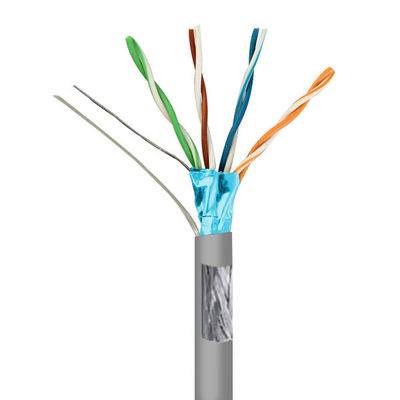

| Cable Type | CAT5E FTP Shielded |
| Frequency | 100MHz (Expand to 350Hz) |
| Conductor Material | Copper |
| Conductor Gauge | 24 AWG |
| Jacket Material | PVC |

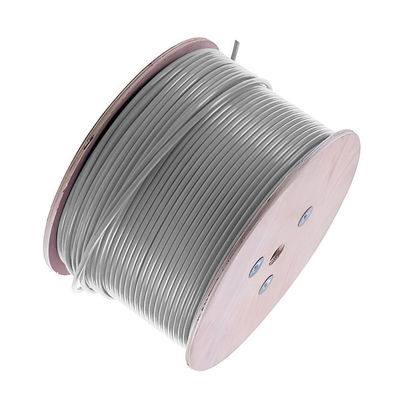

| Cable Length | 1000Ft |
| Jacket Color | Grey |
| Cable Shielding | SFTP |
| Construction Item | Description |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19 ~ 24%) |
| Insulation Material | HDPE 8303 |
| Pair Color Coding | 1p: white + 2 blue stripes & blue 2p: white + 2 orange stripes & orange 3p: white + 2 green stripes & green 4p: white + 2 brown stripes & brown |
| Outside Shield | Polyester film/Aluminium Foil (PET/ALU), Coverage ≥ 115% |
| Jacket Material | PVC, 50P, -20~75℃ |
| Property | Value |
|---|---|
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 2% |
| Insulation Resistance | >1500 MΩ / 100m |
| Mutual capacitance | 5600 pF / 100m MAX |
| Characteristic impedance at 100MHz | 100 ± 15 Ω |
| Frequency (MHz) | Attenuation (Max dB/100m) | Propagation Delay (MAX ns/100m) | Return Loss (Min dB) | NEXT (Min dB) |
|---|---|---|---|---|
| 1 | 4.05 | 552 | 45 | 56.27 |
| 10 | 6.47 | 545.38 | 25 | 50.3 |
| 100 | 21.98 | 537.6 | 20.11 | 35.3 |
