| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5SF-007 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

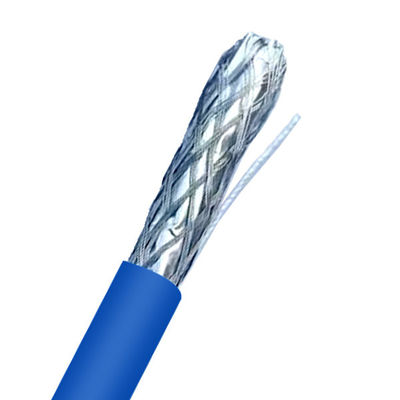

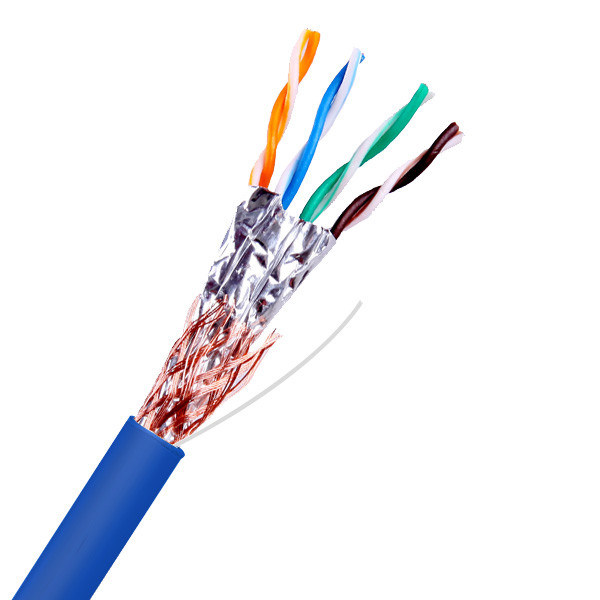

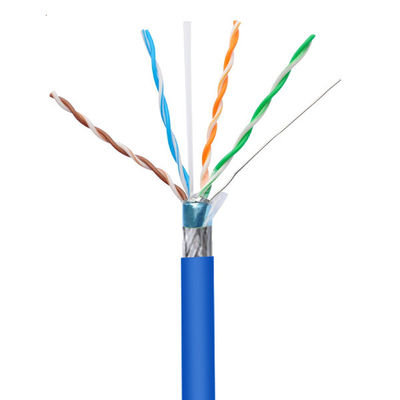

High-performance Cat5e SFTP 24AWG cable with 1000Ft blue PVC jacket, designed for reliable high-speed data transmission up to 350Hz. Features shielded construction for interference protection and durable PVC jacket for wear resistance.
| Parameter | Value |
|---|---|
| Jacket Material | PVC |
| Conductor Gauge | 24 AWG |
| Frequency | 100MHz |
| Cable Shielding | SFTP |
| Conductor Material | Copper |
| Cable Length | 305m (1000Ft) |
| Jacket Color | Blue |
| Cable Type | CAT5E |
Bare Solid Copper (elongation: 19-24%), 24 AWG
HDPE 8303, 0.90 ± 0.02 mm OD
Variable lay lengths from 15.5mm to 22.0mm
Polyester film/Aluminium Foil (PET/ALU) with ≥115% coverage
PVC, 50P, -20~75℃, 6.5 ± 0.2 mm OD
| Property | Value |
|---|---|
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 2% |
| Insulation Resistance | >1500 MΩ / 100m |
| Mutual capacitance | 5600 pF / 100m MAX |
| Characteristic impedance at 100MHz | 100 ± 15 Ω |
| Frequency (MHz) | Attenuation (Max dB/100m) | NEXT (Min dB) |
|---|---|---|
| 1 | 4.05 | 56.27 |
| 10 | 6.47 | 50.3 |
| 100 | 21.98 | 35.3 |
