Yellow PVC Ethernet Cable 100MHz 0.51mm Pure Copper 1000FT SFTP CAT5E Cable

Brand Name:	ITI-LINK
Model Number:	ITI-CT5SF-005
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Jacket Color:

Yellow

Jacket Material:

PVC

Cable Shielding:

SFTP

Cable Type:

CAT5E

Frequency:

100MHz

Cable Length:

1000Ft

Conductor Material:

Copper

Conductor Gauge:

24 AWG

Packaging Details:

Color Box+Packing Box 30*30*12cm

Highlight:

Yellow SFTP CAT5E Cable

SFTP CAT5E Cable 100MHz

0.51mm pvc ethernet cable

Product Description

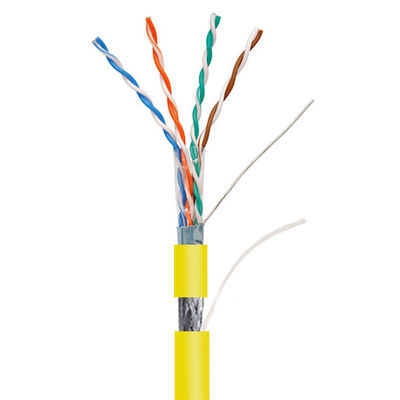

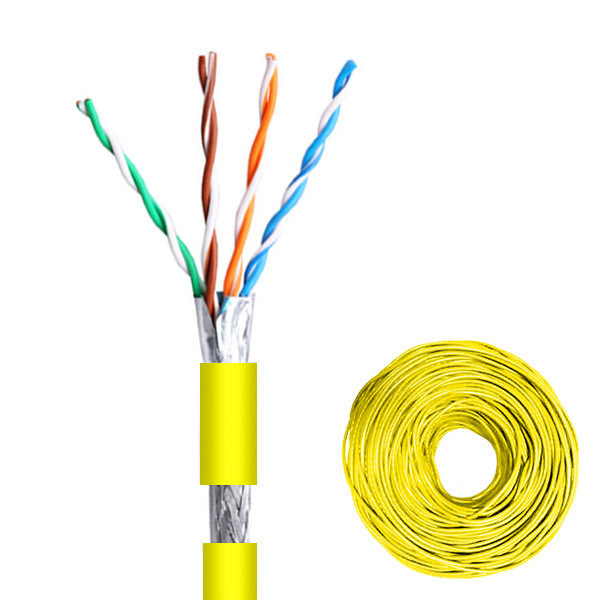

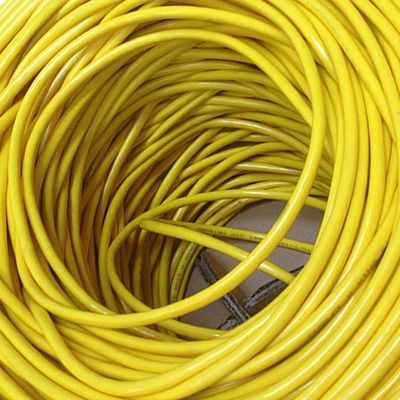

Yellow PVC Ethernet Cable 100MHz 0.51mm Pure Copper 1000FT SFTP CAT5E Cable

Product Overview

This Cat5e SFTP 24AWG 0.510mm Copper 1000Ft Yellow PVC LAN Cable is designed for large-scale network installations, providing reliable performance with its pure copper conductors and excellent shielding against interference.

Key Features

1000Ft (305m) length ideal for extensive network installations
24AWG solid copper conductors (0.510mm diameter) for reliable performance
SFTP (Shielded Foiled Twisted Pair) construction for superior EMI protection
Yellow PVC jacket for easy identification and cable management
100MHz frequency rating suitable for high-speed data transfer

Technical Specifications

Parameter	Value
Cable Type	CAT5E
Cable Shielding	SFTP
Conductor Gauge	24 AWG
Conductor Material	Copper
Jacket Material	PVC
Jacket Color	Yellow
Cable Length	305m (1000Ft)
Frequency	100MHz

Construction Details

Conductor Material:

Bare Solid Copper (elongation: 19-24%)

Insulation Material:

HDPE 8303

Pair Colors:

1p: white+blue stripes, 2p: white+orange stripes, 3p: white+green stripes, 4p: white+brown stripes

Outside Shield:

Polyester film/Aluminium Foil (PET/ALU) with ≥115% coverage

Jacket Material:

PVC, 50P, -20~75℃

Electrical Properties

Property	Value
Conductor Resistance at 20°C	≤ 9.5 Ω/100m
Resistance unbalance within a pair	≤ 2%
Insulation Resistance	>1500 MΩ/100m
Mutual capacitance	5600 pF/100m MAX
Characteristic impedance at 100MHz	100 ± 15 Ω

Applications

Small to medium-sized enterprise networks
Home networking installations
Industrial environments with electromagnetic interference
Connecting computers, printers, routers, and other network devices
Programmable Logic Controllers (PLCs) and industrial sensors

Packing and Shipping

Product Packaging:

1 SFTP CAT5E Cable
Box packaging
Product label

Shipping:

Ships within 15-45 business days
Tracking number provided

Frequently Asked Questions

What is the length of the cable?

The cable comes in a standard length of 305 meters (1000 feet).

What is the difference between SFTP and UTP CAT5E cables?

SFTP cables have an extra layer of shielding to reduce electromagnetic interference, making them ideal for high-performance networks and areas with EMI. UTP cables lack this additional shielding.

Can this cable be used for outdoor installations?

No, this cable is designed for indoor use only. Outdoor installations require special weather-resistant cables.

Is the cable compatible with PoE (Power over Ethernet) devices?

Yes, the cable is fully compatible with PoE devices and can handle both data and power transmission.
