| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT5SF-003 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

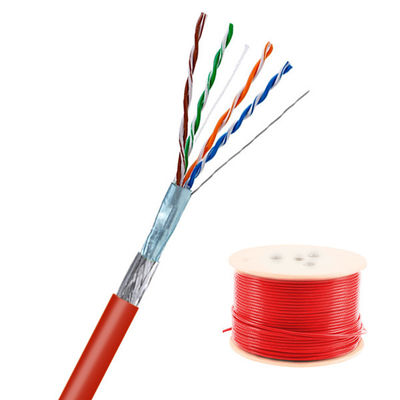

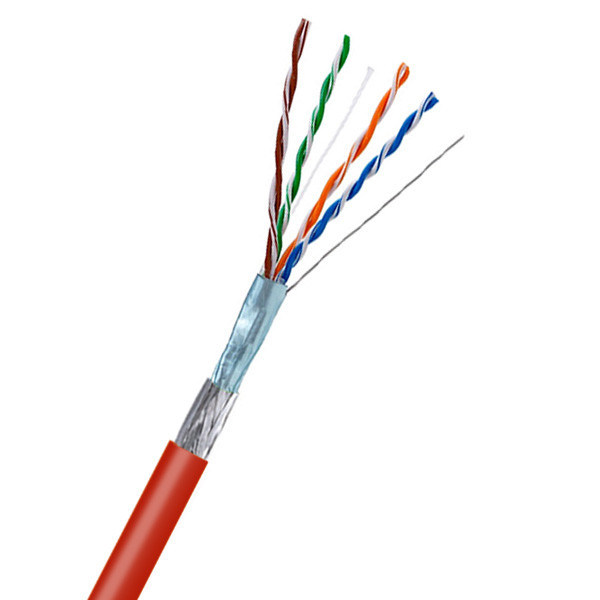

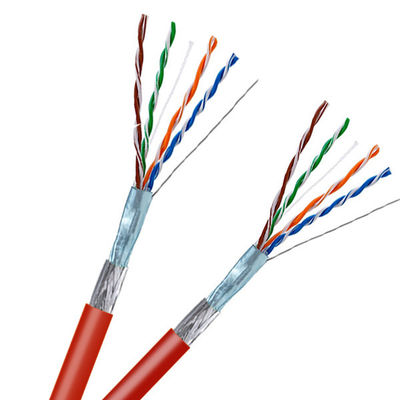

The SFTP CAT5E Data Cable features a durable PVC jacket designed for harsh environments, with excellent protection against abrasion, moisture, and chemicals. The bare copper conductor ensures superior signal transmission for reliable data transfer.
| Attribute | Value |
|---|---|
| Cable Type | CAT5E |
| Conductor Gauge | 24 AWG |
| Conductor Material | Bare Solid Copper |
| Jacket Color | Red |
| Cable Shielding | SFTP |
| Frequency | 100MHz |
| Cable Length | 305m (1000FT) |
| Jacket Material | PVC |
| Component | Specification |
|---|---|
| Conductor | Bare Solid Copper (elongation: 19-24%) |
| Insulation | HDPE 8303, 0.90 ± 0.02 mm OD |
| Pair Twist | Variable lay lengths (15.5-22.0mm) |
| Outside Shield | Polyester film/Aluminium Foil (PET/ALU), ≥115% coverage |
| Jacket | PVC, 6.5 ± 0.2mm OD, red color |
| Property | Value |
|---|---|
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 2% |
| Insulation Resistance | >1500 MΩ / 100m |
| Mutual capacitance | 5600 pF / 100m MAX |
| Characteristic impedance at 100MHz | 100 ± 15 Ω |
