| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6SF-003 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 1500pcs/day |

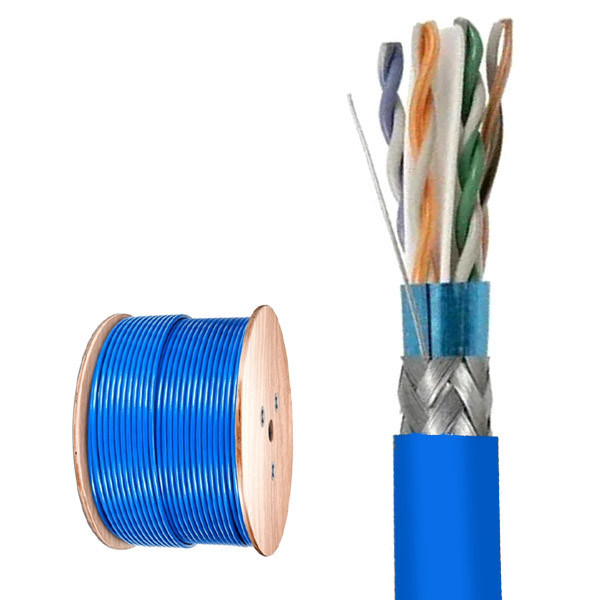

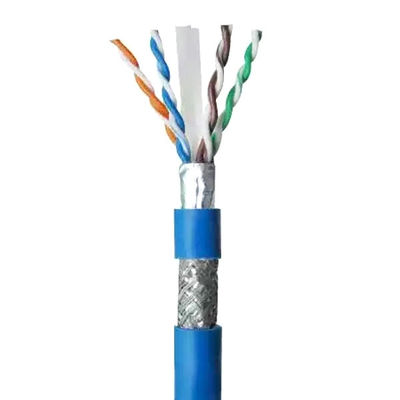

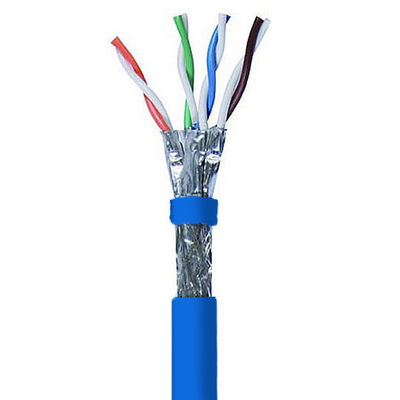

This high-performance Cat6 SFTP 23AWG 250MHz LSZH Ethernet Cable (305 meters) delivers exceptional signal quality with maximum protection against electromagnetic interference (EMI) and radio frequency interference (RFI). The shielded and foiled twisted pair (SFTP) design provides superior noise rejection compared to standard UTP cables.
| Parameter | Specification |
|---|---|
| Cable Type | CAT6 SFTP Cable |
| Conductor Size | 23AWG |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Shielding Type | SFTP (Shielded Foiled Twisted Pair) |
| Conductor Material | Bare Solid Copper |
| Maximum Frequency | 250MHz |
| Maximum Distance | 100 meters |
| Color | Blue |
| Component | Specification |
|---|---|
| Conductor | Bare Solid Copper (elongation: 19-24%) |
| Insulation | HDPE (1.14 ±0.05 mm OD) |
| Pair Twist | Variable lay lengths (19.0mm to 27.0mm) |
| Shield | Polyester/Aluminium (PET/ALU) ≥115% coverage |
| Jacket | LSZH, 60P (-20°C to 75°C), 7.2 ± 0.2mm OD |
| Property | Value |
|---|---|
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Resistance Unbalance | ≤ 2% |
| Insulation Resistance | >1500 MΩ / 100m |
| Mutual Capacitance | 5600 pF / 100m MAX |
| Characteristic Impedance | 100 ± 15 Ω |
| Frequency (MHz) | Attenuation (Max dB/100m) | NEXT (Min dB) | PS NEXT (Min dB) |
|---|---|---|---|
| 250 | 32.85 | 39.33 | 36.33 |
| 100 | 19.8 | 45.3 | 42.3 |
| 50 | 13.66 | 49.82 | 46.82 |
