| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6SF-001 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

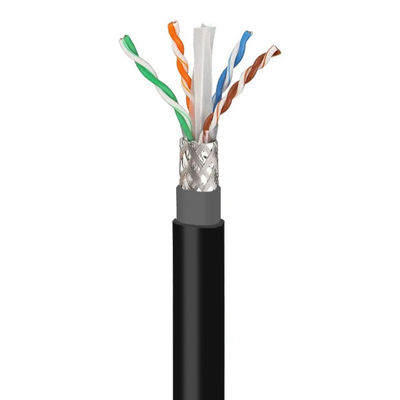

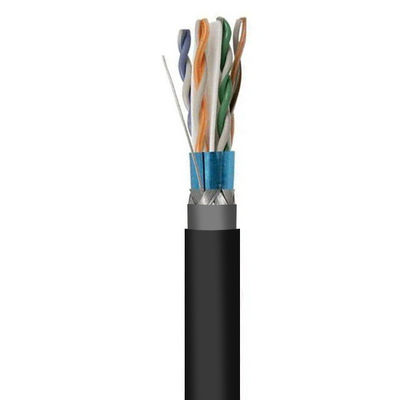

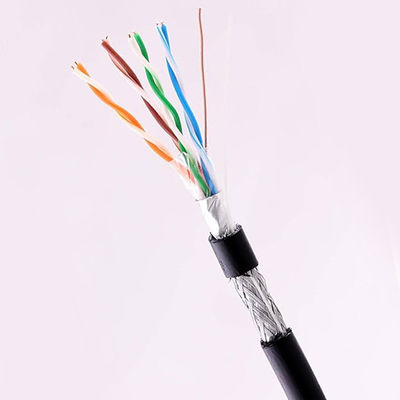

Our Cat6 SFTP 23AWG Solid Outdoor Black PVC + PE High Speed Ethernet Cable (1000FT length) delivers exceptional performance for demanding networking infrastructure requirements.
| Cable Type | CAT6 SFTP |
|---|---|
| Shielding Type | SFTP |
| Maximum Frequency | 250MHz |
| Conductor Size | 23AWG |
| Conductor Material | Solid Copper |
| Maximum Data Rate | 1Gbps |
| Jacket Material | PE+PVC |
| Component | Specification |
|---|---|
| Conductor | Bare Solid Copper (elongation: 19-24%) |
| Insulation | HDPE 8303 |
| Pair Twist | Variable lay lengths (15.5-22.0mm) |
| Shielding | Polyester film/Aluminium Foil (PET/ALU) with ≥115% coverage |
| Jacket | Inner: PVC, Outer: PE (Black) |
| Property | Value |
|---|---|
| Conductor Resistance at 20°C | ≤ 9.5 Ω/100m |
| Resistance Unbalance | ≤ 2% |
| Insulation Resistance | >1500 MΩ/100m |
| Mutual Capacitance | 5600 pF/100m MAX |
| Characteristic Impedance | 100 ± 15 Ω |
