50MHz SFTP Shielding Type Cat 6 Ethernet Cable Copper Conductor LSZH Jacket

Name: 50MHz SFTP Shielding Type Cat 6 Ethernet Cable Copper Conductor LSZH Jacket
Brand: Integrity Cable Co., Limited
SKU: ITI-CT6SF-05
Availability: InStock

Brand Name:	ITI-LINK
Model Number:	ITI-CT6SF-05
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Maximum Data Rate:

10Gbps

Conductor Material:

Copper

Conductor Size:

23AWG

Maximum Transmission Distance:

305 Meters

Maximum Frequency:

250MHz

Cable Type:

CAT6

Shielding Type:

SFTP

Jacket Material:

LZSH

Packaging Details:

Wooden shaft packaging 32*22*12cm Outer box size： 37*37*24cm

Highlight:

SFTP Shielding Cat 6 Ethernet Cable

50MHz Cat 6 Ethernet Cable

LSZH Jacket SFTP CAT6 Cable

Product Description

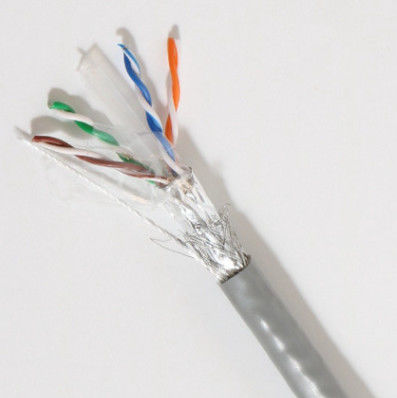

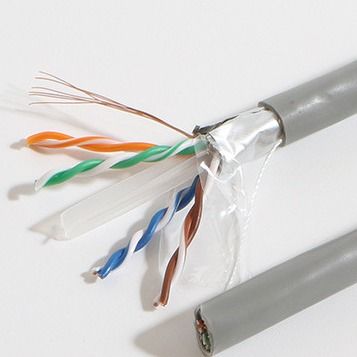

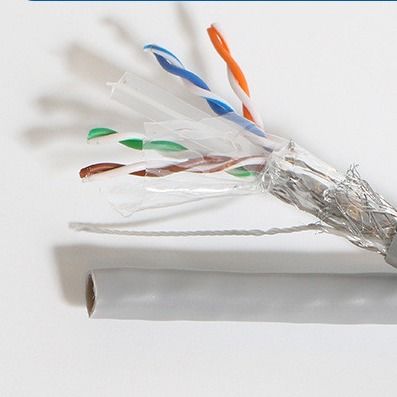

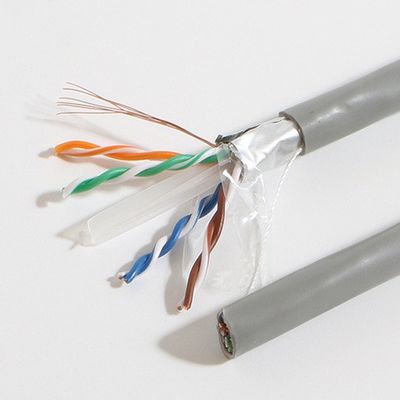

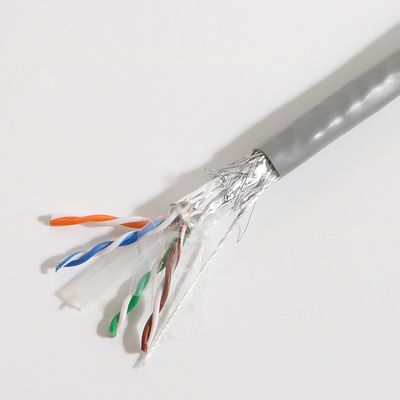

50MHz SFTP Shielding Type Cat 6 Ethernet Cable Copper Conductor LSZH Jacket

Premium Networking Solution

The SFTP Shielding Type Cat 6 Ethernet Cable is a high-performance networking solution designed for reliable, high-speed connections in both residential and commercial environments. Featuring copper conductors and advanced shielding technology, this cable delivers exceptional signal integrity and data transmission.

Key Features

High-quality copper conductors for efficient signal transmission
SFTP (Shielded Foiled Twisted Pair) shielding for superior EMI protection
LSZH (Low-Smoke Zero-Halogen) jacket for safety and durability
Supports 10Gbps data rates for high-speed networking
Maximum transmission distance of 305 meters
Compliant with CAT6 ANSI/TIA-568.2-D standards

Technical Specifications

Parameter	Value
Maximum Frequency	250MHz
Conductor Size	23AWG
Jacket Material	LSZH
Maximum Data Rate	10Gbps
Maximum Transmission Distance	305 Meters
Conductor Material	Copper
Cable Type	CAT6
Shielding Type	SFTP

Construction Details

Component	Specification
Conductor Material	Bare Solid Copper (elongation: 19-24%)
Insulation Material	HDPE
Shield Construction	Polyester/Aluminium (PET/ALU)
Jacket Material	LSZH, 60P, -20~75℃

Applications

Large-scale network deployments in commercial buildings
Office network infrastructure
Home networking for high-bandwidth applications
Data centers and server rooms
Industrial environments requiring EMI protection

Frequently Asked Questions

Q: What is the brand of this SFTP CAT6 Cable?

A: The brand of this cable is ITI-LINK.

Q: What is the model number of this SFTP CAT6 Cable?

A: The model number of this cable is ITI-CT6SF-05.

Q: Where is this SFTP CAT6 Cable manufactured?

A: This cable is manufactured in SHENZHEN.

Q: What type of shielding does this SFTP CAT6 Cable have?

A: This cable features SFTP (Shielded Foiled Twisted Pair) shielding for enhanced performance.

Q: What is the length of this SFTP CAT6 Cable?

A: This cable is available in various lengths ranging from 1 to 100 meters.
