SFTP Cat6 Cable Fast and Stable Data Transfer with 23AWG Conductor For Outdoor Use

Name: SFTP Cat6 Cable Fast and Stable Data Transfer with 23AWG Conductor For Outdoor Use
Brand: Integrity Cable Co., Limited
SKU: ITI-CT6SF-11
Availability: InStock

Brand Name:	ITI-LINK
Model Number:	ITI-CT6SF-11
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Conductor Material:

Copper

Shielding Type:

SFTP

Maximum Data Rate:

10Gbps

Maximum Transmission Distance:

500Feet

Maximum Frequency:

250MHz

Conductor Size:

23AWG

Cable Type:

CAT6

Jacket Material:

PE+PVC

Packaging Details:

Inner box size: 32 cm (length) × 32 cm (width) × 18.5 cm (height) Outer box size (for packing): 39 cm (length) × 33.5 cm (width) × 34 cm (height)

Highlight:

Outdoor Use SFTP Cat6 Cable

23AWG Conductor SFTP Cat6 Cable

Product Description

SFTP Cat6 Cable with 23AWG Conductor for Outdoor Use

Premium Outdoor Networking Solution

ITI-LINK presents the ITI-CT6SF-11 SFTP Cat6 Cable, engineered for demanding outdoor networking environments. This high-performance cable delivers fast, stable data transfer with superior protection against environmental factors.

Key Features

23AWG solid copper conductors for excellent conductivity
Dual-layer PE+PVC jacket for weather resistance and flexibility
SFTP shielding for protection against EMI/RFI interference
Supports 10Gbps data transfer up to 250MHz frequency
Available in lengths up to 500 feet for versatile installations
Meets Category 6 performance standards for modern networks

Technical Specifications

Parameter	Specification
Cable Type	CAT6 SFTP Cable
Maximum Frequency	250MHz
Shielding Type	SFTP
Maximum Data Rate	10 Gbps
Conductor Material	Copper
Jacket Material	PE+PVC
Conductor Size	23AWG

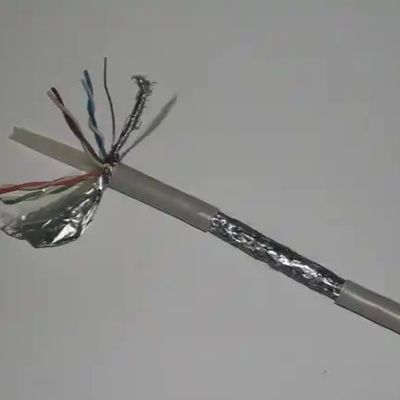

Construction Details

Component	Specification
Conductor Material	Bare Solid Copper (elongation: 19-24%)
Insulation Material	HDPE 8303
Outside Shield	Polyester film/Aluminium Foil (PET/ALU)
Jacket Material	Inner Jacket: PVC + Outside Jacket: PE
Jacket Color	Gray

Transmission Properties

Frequency (MHz)	Attenuation (Max dB/100m)	Propagation Delay (MAX ns/100m)	Return Loss (Min dB)	NEXT (Min dB)
4	3.78	552	45	66.27
8	5.32	546.73	45	61.75
10	5.95	545.38	45	60.3
16	7.55	543	45	57.24
20	8.47	542.05	45	55.78
250	32.85	536.28	17.32	39.33

Applications

The ITI-CT6SF-11 SFTP Cat6 Cable is ideal for various outdoor networking applications:

Outdoor security surveillance systems with IP cameras
Outdoor Wi-Fi access point backhaul networks
Industrial outdoor networking for automation
Smart city connectivity solutions
Large-scale campus networks

Frequently Asked Questions

Q: What is the brand name of this SFTP CAT6 Cable?

A: The brand name of this cable is ITI-LINK.

Q: What is the model number of this SFTP CAT6 Cable?

A: The model number of this cable is ITI-CT6SF-11.

Q: Where is this SFTP CAT6 Cable manufactured?

A: This cable is manufactured in SHENZHEN.

Q: What is the maximum data transfer speed supported by this SFTP CAT6 Cable?

A: This cable supports data transfer speeds up to 10 Gigabit per second.

Q: Is this SFTP CAT6 Cable suitable for outdoor installations?

A: Yes, this cable is specifically designed for outdoor installations with weather-resistant PE+PVC jacket construction.
