| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6SF-10 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

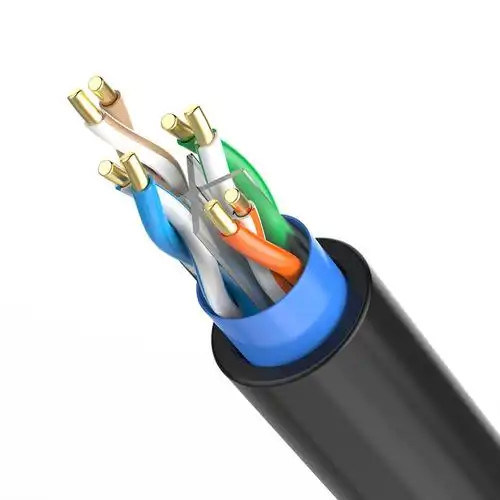

| Cable Type | CAT6 SFTP Cable |
|---|---|
| Maximum Frequency | 250MHz |
| Shielding Type | SFTP |
| Maximum Data Rate | 10 Gbps |
| Conductor Material | Copper |
| Jacket Material | PE+PVC |
| Conductor Size | 23AWG |
| Construction Item | Description |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Insulation Material | HDPE 8303 |
| Outside Shield | Polyester film/Aluminium Foil (PET/ALU) |
| Jacket Material | Inner Jacket: PVC + Outside Jacket: PE |
| Color | Black |
| Frequency (MHz) | Attenuation (Max dB/100m) | Propagation Delay (MAX ns/100m) | Return Loss (Min dB) | NEXT (Min dB) |
|---|---|---|---|---|
| 4 | 3.78 | 552 | 45 | 66.27 |
| 100 | 19.8 | 537.6 | 20.11 | 45.3 |
| 250 | 32.85 | 536.28 | 17.32 | 39.33 |
