| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6SF-09 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
| Parameter | Value |
|---|---|

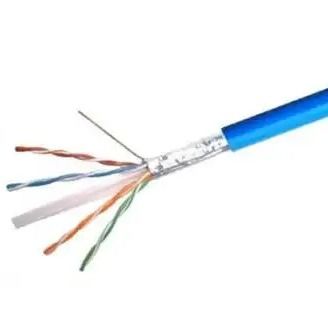

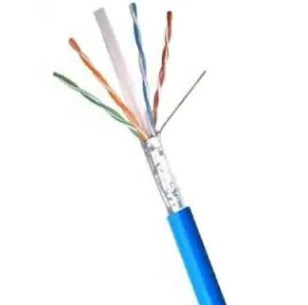

| Cable Type | CAT6 SFTP Cable |
| Maximum Frequency | 250MHz |
| Shielding Type | SFTP |
| Maximum Data Rate | 10 Gbps |
| Conductor Material | Copper |
| Jacket Material | LSZH |
| Conductor Size | 23AWG |
| Construction Item | Description |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Insulation Material | HDPE |
| Insulation Resistance | >1500 MΩ / 100m |
| Jacket Material | LSZH, 60P, -20~75℃ |
| Jacket Hardness | 81± 3 |
| Frequency (MHz) | Attenuation (Max dB/100m) | Propagation Delay (MAX ns/100m) | Return Loss (Min dB) |
|---|---|---|---|
| 4 | 3.78 | 552 | 45 |
| 8 | 5.32 | 546.73 | 45 |
| 10 | 5.95 | 545.38 | 45 |
| 16 | 7.55 | 543 | 45 |
| 20 | 8.47 | 542.05 | 45 |
| 250 | 32.85 | 536.28 | 45 |
