| Brand Name: | ITI-LINK |
| Model Number: | ITI-CT6SF-06 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

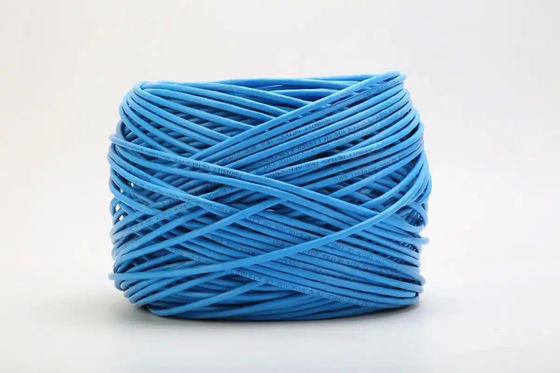

The CAT6 SFTP Ethernet Cable delivers exceptional performance for modern networking environments, combining high-quality materials with advanced design for reliable, high-speed data transmission.
| Parameter | Value |
|---|---|
| Cable Type | CAT6 SFTP |
| Maximum Frequency | 250MHz |
| Shielding Type | SFTP |
| Maximum Data Rate | 10Gbps |
| Conductor Material | Copper |
| Jacket Material | PVC |
| Conductor Size | 23AWG |
| Component | Specification |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Conductor Resistance | ≤ 9.5 Ω / 100m at 20°C |
| Insulation Material | HDPE |
| Shield Construction | Polyester/Aluminium (PET/ALU) with ≥ 115% coverage |
| Jacket Material | PVC, 50P, -20~75℃ |
| Frequency (MHz) | Attenuation (Max dB/100m) | Return Loss (Min dB) | NEXT (Min dB) |
|---|---|---|---|
| 4 | 3.78 | 45 | 66.27 |
| 100 | 19.8 | 20.11 | 45.3 |
| 250 | 32.85 | 17.32 | 39.33 |
A: The brand of this cable is ITI-LINK.
A: The model number of this cable is ITI-CT6SF-06.
A: This cable is manufactured in SHENZHEN.
A: This cable supports data transfer speeds of up to 10 Gigabit per second.
A: Yes, this cable is designed for both indoor and outdoor use, providing reliable performance in various environments.
