HDPE 8303 CAT6A UTP LSZH Ethernet Cable 10Gbps 500MHz Blue 23AWG

Name: HDPE 8303 CAT6A UTP LSZH Ethernet Cable 10Gbps 500MHz Blue 23AWG
Brand: Integrity Cable Co., Limited
SKU: ITI-C6AU-013
Availability: InStock

Brand Name:	ITI -LINK
Model Number:	ITI-C6AU-013
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Color:

Blue

Category:

CAT6A

Frequency Rating:

500 MHz

Cable Type:

UTP

Conductor Material:

Copper

Transmission Speed:

10 Gbps

Conductor Size:

23 AWG

Packaging Details:

Inner box size: 32 cm (length) × 32 cm (width) × 18.5 cm (height) Outer box size (for packing): 39 cm (length) × 33.5 cm (width) × 34 cm (height)

Highlight:

HDPE 8303 CAT6A UTP Ethernet Cable

LSZH CAT6A Cable 500MHz

23AWG Ethernet Cable blue

Product Description

HDPE 8303 CAT6A UTP LSZH Ethernet Cable 10Gbps 500MHz Blue 23AWG

CAT6A UTP LSZH Cable For Data Centers, 5G Base Stations And Industrial Network Installations

Product Specifications

Attribute	Value
Color	Blue
Category	CAT6A
Frequency Rating	500 MHz
Cable Type	UTP
Conductor Material	Copper
Transmission Speed	10 Gbps
Conductor Size	23 AWG

Product Overview

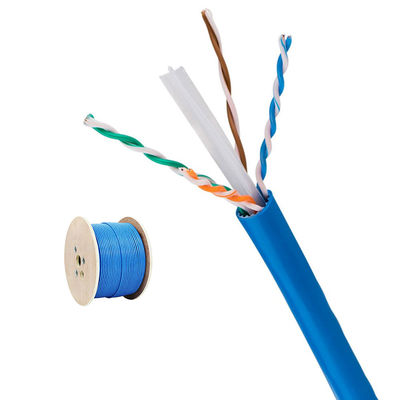

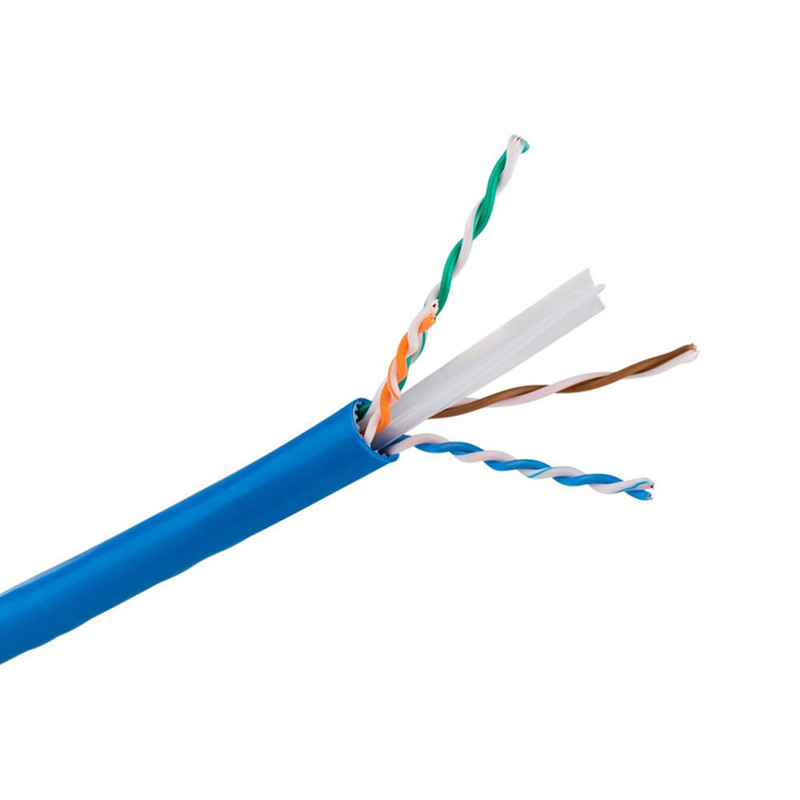

The INTEGRITY ITI-C6AU-013 CAT6A UTP LSZH Ethernet Cable is engineered for high speed 10Gbps network deployments, delivering up to 500MHz bandwidth for reliable data transmission in data centers, enterprise networks, industrial automation, and 5G base station backhaul. Built with solid 23AWG oxygen-free copper conductors and a cross separator, this UTP CAT6A cable ensures minimal attenuation and reduced crosstalk over runs up to 100 meters.

With an optional LSZH (Low Smoke Zero Halogen) jacket, it meets stringent building safety standards, reducing toxic gas emissions and smoke density during fire events—ideal for hospitals, schools, public buildings, and enclosed plenum spaces. For demanding industrial applications, the cable is also available with a durable blue PVC or PE jacket, offering superior resistance to abrasion, moisture, UV exposure, and mild chemicals.

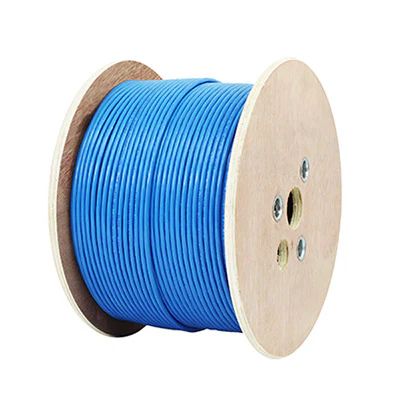

Supplied on 500FT bulk reels, the ITI-C6AU-013 is optimized for system integrators, electrical contractors, and wholesale buyers, with factory-tested performance across attenuation, return loss, and continuity parameters. Fully compatible with 10GBASE-T switches, PoE devices, and structured cabling systems, it delivers cost-effective performance thanks to its UTP CAT6A design, making it perfect for high-density patch panels, telecom rooms, and backbone runs.

Key Features

10Gbps speed & 500MHz bandwidth — ideal for 10GBASE-T and high-performance LANs
Solid 23AWG oxygen-free copper with cross separator for stable signal integrity
LSZH jacket option meets safety codes for low smoke zero halogen requirements
Durable PVC/PE jacket version for industrial and outdoor-protected runs
500FT bulk reels, factory-tested, ready for wholesale and large-scale rollouts
Compatible with PoE, 10G switches, and structured cabling systems

Technical Specifications

Construction Item	Description	Electrical Properties	Value
Conductor	Material	Oxygen-Free Bare Solid Copper	Single Conductor DC Resistance,Max,20℃: 9.5Ω/100m
Elongation	≥15%	Conductor DC Resistance Imbalance,Max,20℃	≤2%
OD	23AWG	Pairs DC Resistance Imbalance,Max,20℃	≤4%
Insulation	Material	HDPE 8303	Delay Skew,1-250MHz,Max: 45ns/100m
OD	1.01±0.02	Velocity of Propagation	69%
Average THK	0.21mm	Insulation Resistance(CD/CD),DC100-500V,Min	5000MΩ.km

Applications

Data center cabling — high-speed 10Gbps backbone links, switch-to-switch connections, and cross-connects using CAT6A UTP bulk cable.

Enterprise structured cabling — LSZH CAT6A installations in offices, hospitals, schools, and public buildings for safety compliance.

5G base station and telecom networks — reliable UTP CAT6A connections for backhaul and edge computing nodes.

Industrial automation — blue PVC/PE jacket CAT6A cabling for manufacturing floors, control rooms, and substation monitoring systems.

Wholesale and large-scale network projects — 500FT reels of ITI-C6AU-013 for cost-efficient high-performance deployments.
