Wholesale Bulk UTP CAT6A PVC CMP-LP (0.5A) Cable for High Speed Network Installations

Name: Wholesale Bulk UTP CAT6A PVC CMP-LP (0.5A) Cable for High Speed Network Installations
Brand: Integrity Cable Co., Limited
SKU: ITI-C6AU-012
Availability: InStock

Brand Name:	ITI -LINK
Model Number:	ITI-C6AU-012
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Conductor Size:

23 AWG

Jacket Material:

PVC

Cable Type:

UTP

Conductor Material:

Copper

Category:

CAT6A

Frequency Rating:

500 MHz

Jacket Color:

Blue

Length:

500Ft

Packaging Details:

Inner box size: 32 cm (length) × 32 cm (width) × 18.5 cm (height) Outer box size (for packing): 39 cm (length) × 33.5 cm (width) × 34 cm (height)

Highlight:

UTP CAT6A Wholesale Bulk Cable

UTP CAT6A CMP-LP Cable

0.5A UTP CAT6A Cable

Product Description

Wholesale Bulk UTP CAT6A PVC CMP-LP (0.5A) Cable for High Speed Network Installations

Premium S/FTP CAT6A PVC Gray Jacket Cable for Industrial-Grade Networks

ITI-LINK introduces the ITI-CTSF6A-012, a premium S/FTP CAT6A PVC gray jacket cable engineered for wholesale bulk orders and harsh industrial environments. Available in 500ft bulk reels, this cable combines 23AWG oxygen-free copper conductors, 550MHz bandwidth, and dual-layer shielding to deliver reliable 10Gbps performance in demanding industrial, logistics, and smart infrastructure setups.

Ultra-Robust Shielding for Industrial Reliability

Featuring S/FTP (Shielded Foil Twisted Pair) technology, the ITI-CTSF6A-012 provides dual-layer EMI/RFI protection (aluminum foil + braided copper shield), ensuring error-free data transmission in environments with heavy machinery, power lines, or wireless interference. The 23AWG solid copper conductors maintain signal integrity over 164ft (50 meters), while the 550MHz bandwidth supports cutting-edge applications like real-time industrial automation, 8K surveillance, and 5G-enabled IoT networks.

PVC Gray Jacket: Optimized for Industrial Installations

The gray PVC jacket offers three key advantages for bulk deployments:

Extreme Durability: Resistant to oil, solvents, and abrasion, making it ideal for factory floors, outdoor storage yards, and conveyor belt systems.
Flexible Routing: Smooth, low-friction PVC enables fast installation through conduits in tight industrial spaces or elevated cable trays in warehouses.
Visual Simplification: The neutral gray color reduces confusion in multi-cable setups, allowing technicians to quickly identify connections in control rooms or patch panels during large-scale installations.

Bulk Reel Benefits for Large Projects

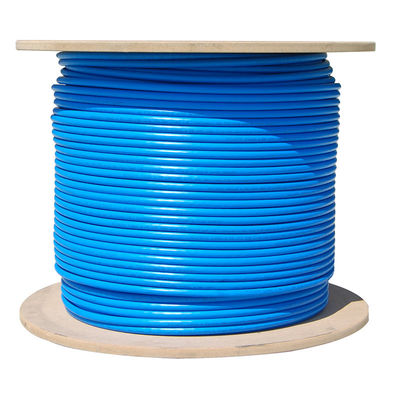

Each 500ft reel is designed for wholesale efficiency:

Cost-Effective Volume Pricing: Discounts start at 50 reels, with tiered pricing for orders of 200+ reels, perfect for industrial contractors and facility managers.
No-Splice Deployment: Continuous 500ft lengths eliminate splicing errors, speeding up installations in sprawling factories, logistics hubs, or multi-building industrial parks.
Custom Branding: Optional ITI-LINK labeling for bulk orders to enhance inventory management and project visibility.

Technical Specifications

Specification	Details
Cable Type	Cat6A UTP Cable
Category	Cat6A Ethernet Cable
Frequency	500 MHz
Length	500FT
Jacket Material	PVC
Jacket Color	Blue
Conductor Material	Copper
Conductor Size	23 AWG

Detailed Construction Specifications

Construction Item	Description	Electrical Property
Conductor	Material: Bare Solid Copper (elongation: 19-24%) OD: 23 AWG	Conductor Resistance at 20°C: ≤ 9.5 Ω / 100m Resistance unbalance within a pair: ≤ 5%
Insulation	Material: FEP DAIKIN NP-101 E79842 OD: 1.01 ± 0.01 mm Average THK: 0.22 mm	Insulation Resistance at 20°C: >1500 MΩ / 100m Mutual capacitance: 5600 pF / 100m MAX
Jacket	Material: PVC, MSC 1080 NAT E107947 Hardness: 81 ±3 OD: 6.0 ± 0.2	Dielectric Strength Test Voltage: 1.00KV DC or 0.7 KV AC for 1 min (No breakdown)

Transmission Properties

Frequency (MHz)	Attenuation (Max dB/100m)	Propagation Delay (Max ns/100m)	Return Loss (Min dB)	NEXT (Min dB)
4	3.8	552	45	66.27
100	19.13	537.6	20.11	45.3
500	45.26	535.61	17.3	34.82

Industrial Applications

Manufacturing & Automation: Connects PLCs, robotics, and AI-powered quality control systems in automotive plants, pharmaceutical facilities, and food processing lines.
Logistics & Warehousing: Enables seamless communication between AGVs, conveyor belts, and warehouse management software in robotic fulfillment centers.
Energy & Utilities: Installs in substations and renewable energy farms to connect SCADA systems for secure power distribution data transmission.
Transportation Hubs: Deploys in train stations and airports for real-time passenger information systems and baggage handling networks.

Frequently Asked Questions

Q: What is the brand name of this cable?

A: The brand name of this cable is ITI-LINK.

Q: What is the model number of this cable?

A: The model number of this cable is ITI-C6AU-012.

Q: Where is this cable manufactured?

A: This cable is manufactured in SHENZHEN.

Q: What is the maximum data transfer speed of this cable?

A: This cable supports data transfer speeds up to 10Gbps.

Q: Is this cable suitable for outdoor use?

A: No, this cable is not suitable for outdoor use. It is designed for indoor use only.
