| Brand Name: | ITI-LINK |
| Model Number: | ITI-CTSF6A-001 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
| Parameter | Specification |
|---|---|

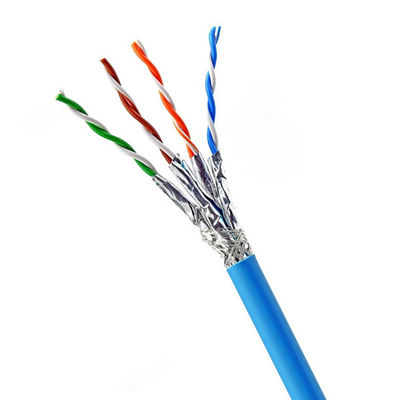

| Cable Type | CAT6A Ethernet Cable |
| Jacket Material | PVC |
| Conductor Size | 23AWG |
| Frequency | 500MHz |

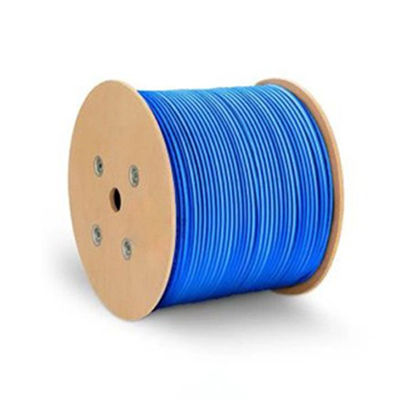

| Length | 1000 Feet |
| Conductor Material | Copper |
| Jacket Color | Blue |
| Shielding Type | SFTP |
| Component | Specification |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Insulation Material | PE Skin-Foam-Skin |
| Pair Identification | Color-coded with white stripes |

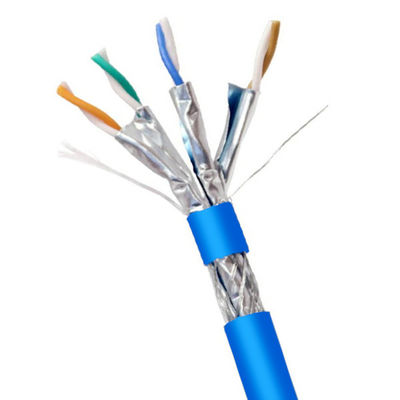

| Shield Construction | Aluminum (PET/ALU) pair shield + Aluminum-magnesium braid |
| Jacket Material | LSZH, 60P, -20~75℃ |
| Property | Value |
|---|---|
| Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| Resistance unbalance within a pair | ≤ 2% |
| Insulation Resistance | >1500 MΩ / 100m |
| Mutual capacitance | 5600 pF / 100m MAX |
| Characteristic impedance at 100MHz | 100 ± 15 Ω |
| Frequency (MHz) | Attenuation (dB/100m) | NEXT (dB) | PS NEXT (dB) |
|---|---|---|---|
| 4 | 3.8 | 66.27 | 63.27 |
| 100 | 19.13 | 45.3 | 42.3 |
| 250 | 31.07 | 39.33 | 36.33 |
| 500 | 45.26 | 34.82 | 31.82 |
