Wholesale Secure Data Transfer with SFTP Cat6A Cable 500 MHz Frequency and Copper Conductor Material

Name: Wholesale Secure Data Transfer with SFTP Cat6A Cable 500 MHz Frequency and Copper Conductor Material
Brand: Integrity Cable Co., Limited
SKU: ITI-CTSF6A-005
Availability: InStock

Brand Name:	ITI-LINK
Model Number:	ITI-CTSF6A-005
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Jacket Material:

PVC (Polyvinyl Chloride)

Shielding Type:

SFTP (Shielded Foiled Twisted Pair)

Conductor Material:

Copper

Frequency:

500 MHz

Length:

1000 Feet

Cable Type:

CAT6A

Jacket Color:

Blue

Conductor Size:

23 AWG

Packaging Details:

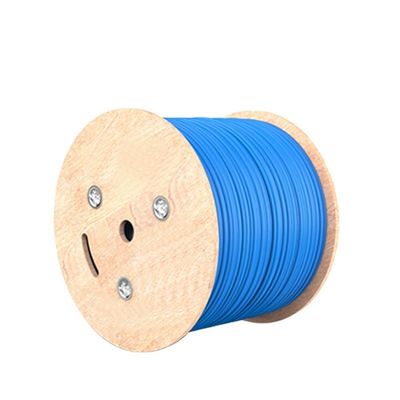

Wooden shaft packaging 32*22*12cm Outer box size： 37*37*24cm

Highlight:

Secure Data Transfer SFTP Cat6A Cable

Copper Conductor SFTP Cat6A Cable

500 MHz SFTP Cat6A Cable

Product Description

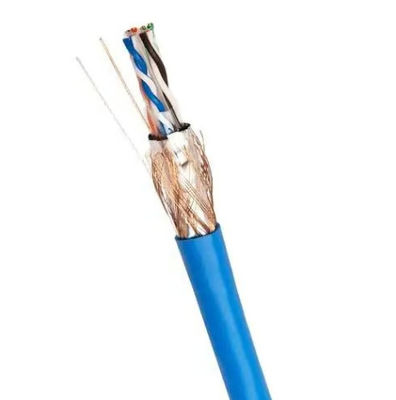

Premium SFTP Cat6A Blue Cable for Secure High-Speed Data Transfer

The SFTP Cat6A Blue Cable is a top-tier networking solution engineered to deliver unmatched secure data transfer, making it the ideal choice for diverse applications that demand rapid, reliable data transmission. Built with cutting-edge Cat6A technology and robust construction, this cable stands out as the premier option for professional installations where both peak performance and long-term durability are non-negotiable.

Key Features

Durable PVC Jacket: Premium PVC material offers exceptional flexibility and superior resistance to abrasion and environmental stress
Extended Length: 1000-foot length provides unmatched flexibility for network layout planning
High-Quality Copper Conductors: Ensures minimal signal loss and optimal data transmission speeds
Advanced SFTP Shielding: Dual-layer shielding (foil + braid) provides robust protection against electromagnetic interference
500 MHz Frequency: Complies with Cat6A standards for high-performance networking

Technical Specifications

Parameter	Value
Jacket Color	Blue
Length	1000 Feet
Cable Type	CAT6A
Frequency	500 MHz
Conductor Material	Copper
Jacket Material	PVC (Polyvinyl Chloride)
Conductor Size	23 AWG
Shielding Type	SFTP (Shielded Foiled Twisted Pair)

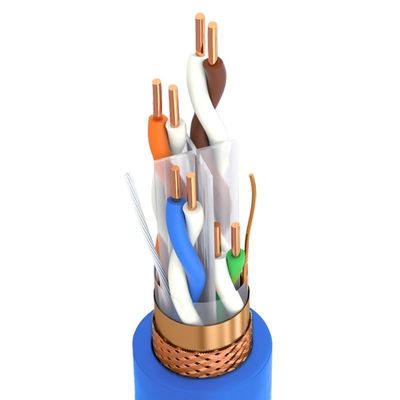

Detailed Construction Specifications

Construction Item	Description	Electrical Property
Conductor Material	Bare Solid Copper (elongation: 19-24%)	Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
Insulation Material	PE Skin-Foam-Skin	Insulation Resistance >1500 MΩ / 100m
Shield Construction	Aluminium (PET/ALU) with ≥ 115% coverage	Characteristic impedance at 100MHz: 100 ± 15 Ω
Jacket Material	PVC, 50P, -20~75℃	Dielectric Strength Test Voltage: 1.00KV DC or 0.7 KV AC for 1 min

Transmission Properties

Frequency (MHz)	Attenuation (Max dB/100m)	NEXT (Min dB on 100m)	PS NEXT (Min dB on 100m)
4	3.8	66.27	63.27
100	19.13	45.3	42.3
250	31.07	39.33	36.33
500	45.26	34.82	31.82

Applications

This SFTP Cat6A Blue Cable is ideal for:

Data centers requiring high-speed, secure data transfer
Server rooms needing stable and fast connections
Office environments with multiple network devices
Industrial settings with electromagnetic challenges
Network infrastructure upgrades and extensions

Frequently Asked Questions

Q: What is the brand name of this SFTP CAT6A Cable?

A: The brand name is ITI-LINK.

Q: What is the model number of this SFTP CAT6A Cable?

A: The model number is ITI-CTSF6A-005.

Q: Where is this SFTP CAT6A Cable manufactured?

A: It is manufactured in SHENZHEN.

Q: What type of shielding does this SFTP CAT6A Cable have?

A: This cable features SFTP (Shielded Foiled Twisted Pair) shielding.

Q: What is the length of this SFTP CAT6A Cable?

A: The length of this cable is 1000 feet.
