| Brand Name: | ITI-LINK |
| Model Number: | ITI-CTSF6A-006 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

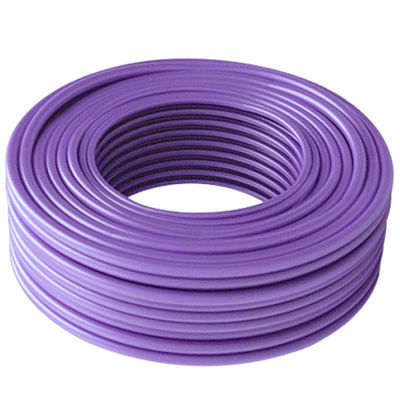

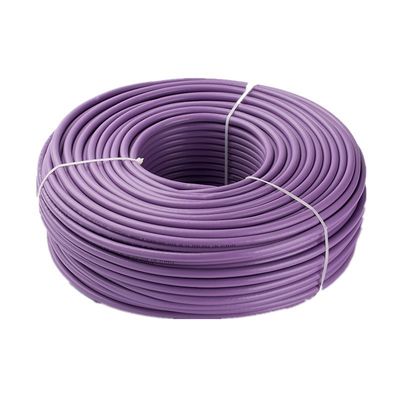

The 23 AWG Conductor Size SFTP CAT6A purple Cable with LSZH Jacket Material Type is a high-performance networking cable designed for demanding networking applications. Featuring a distinctive durable purple jacket, this cable offers both protection and excellent visibility for easy identification in complex setups.
| Parameter | Value |
|---|---|
| Conductor Material | Copper |
| Frequency | 500 MHz |
| Conductor Size | 23 AWG |
| Cable Type | CAT6A |
| Jacket Material | LSZH |
| Shielding Type | SFTP |
| Jacket Color | Purple |
| Length | 1000 Feet |
| Construction Item | Description | Electrical Property |
|---|---|---|
| Conductor | Bare Solid Copper (elongation: 19-24%) | Conductor Resistance at 20°C ≤ 9.5 Ω/100m |
| Insulation | PE Skin-Foam-Skin, OD: 1.35 ±0.01 mm | Insulation Resistance >1500 MΩ/100m |
| Pair Twist | Variable lay lengths for each pair | Capacitance unbalance ≤ 160 pF/100m |
| Shield | Aluminium (PET/ALU) with ≥ 115% coverage | Characteristic impedance: 100 ± 15 Ω |
| Jacket | LSZH, 60P, -20~75℃, OD: 7.5 ± 0.2 mm | Dielectric Strength: 1.00KV DC or 0.7 KV AC |
| Frequency (MHz) | Attenuation (Max dB/100m) | Propagation Delay (Max ns/100m) | Return Loss (Min dB) | NEXT (Min dB) |
|---|---|---|---|---|
| 4 | 3.8 | 552 | 45 | 66.27 |
| 100 | 19.13 | 537.6 | 20.11 | 45.3 |
| 250 | 31.07 | 536.28 | 17.32 | 39.33 |
| 500 | 45.26 | 535.61 | 17.3 | 34.82 |
