| Brand Name: | ITI -LINK |
| Model Number: | ITI-CTSF6A-007 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

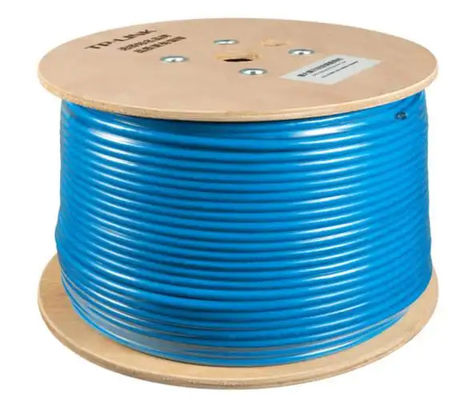

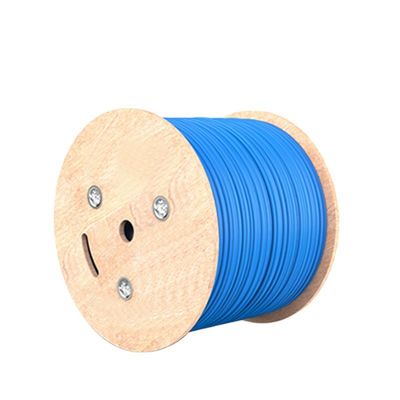

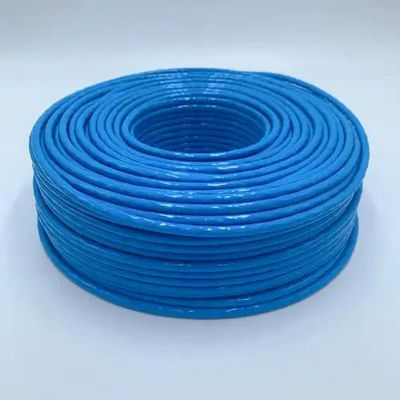

The ITI-CTSF6A-007 SFTP CAT6A LSZH cable delivers exceptional performance for wholesale networking needs. This 500ft bulk cable features a distinctive blue Low Smoke Zero Halogen jacket, 23AWG conductors, and 550MHz bandwidth, making it ideal for high-speed, reliable network connectivity in demanding environments.
| Parameter | Value |
|---|---|
| Jacket Color | Blue |
| Length | 500 Feet |
| Cable Type | CAT6A |
| Frequency | 500 MHz |
| Conductor Material | Copper |
| Jacket Material | LSZH |
| Conductor Size | 23 AWG |
| Shielding Type | SFTP (Shielded Foiled Twisted Pair) |
| Frequency (MHz) | Attenuation (Max dB/100m) | Propagation Delay (Max ns/100m) | Return Loss (Min dB) |
|---|---|---|---|
| 4 | 3.8 | 552 | 45 |
| 100 | 19.13 | 537.6 | 20.11 |
| 250 | 31.07 | 536.28 | 17.32 |
| 500 | 45.26 | 535.61 | 17.3 |
