Purple Cat7 SFTP 23AWG CPR Dca-S2 D2 A1 PVC Cable For 10Gbps Network

Name: Purple Cat7 SFTP 23AWG CPR Dca-S2 D2 A1 PVC Cable For 10Gbps Network
Brand: Integrity Cable Co., Limited
SKU: ITI-CT7SF-008
Availability: InStock

Brand Name:	ITI-LINK
Model Number:	ITI-CT7SF-008
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	1000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Jacket Material:

PVC

Frequency:

600MHz

Conductor Material:

Copper

Shielding Type:

SFTP

Length:

1000Ft

Cable Type:

CAT7

Jacket Color:

Purple

Conductor Size:

23AWG

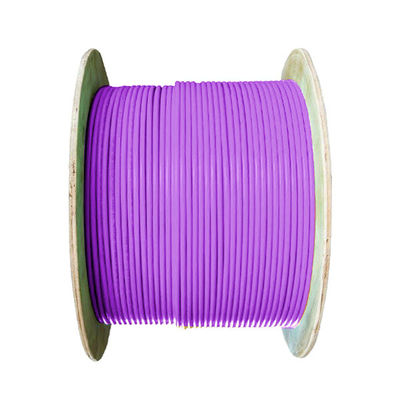

Packaging Details:

Wooden shaft packaging 40*26*20cm Outer box size：42*42*22cm

Highlight:

Purple 10gbps network cable

23AWG 10gbps network cable

1000FT 10gbps ethernet cable

Product Description

Purple Cat7 SFTP 23AWG CPR Dca-S2 D2 A1 PVC Cable For 10Gbps Network

Product Overview

The Cat7 SFTP 23AWG CPR Dca-s2,d2,a1 Purple PVC Cable delivers high-performance networking with 10Gbps speeds and 600MHz frequency. Featuring SFTP (Shielded Foiled Twisted Pair) shielding, this cable provides superior protection against electromagnetic interference (EMI) and radio frequency interference (RFI) while ensuring data security.

Key Features

Shielding: SFTP construction for maximum interference protection
Conductor: 23AWG solid copper for minimal signal loss
Compliance: Meets CPR Dca-s2,d2,a1 standards for safety and performance
Backward Compatibility: Works with earlier Ethernet standards
Durability: Purple PVC jacket protects against environmental factors
Length: 1000FT spool for extensive installations

Technical Specifications

Attribute	Description
Cable Type	Cat7 Ethernet Cable
Shielding Type	SFTP Cat7 Cable
Conductor Material	Copper
Conductor Size	23AWG
Jacket Material	PVC
Jacket Color	Purple
Frequency	600MHz
Length	1000Ft

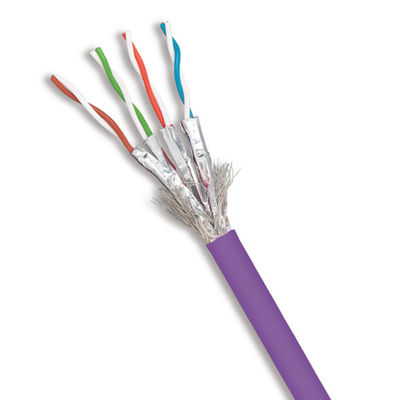

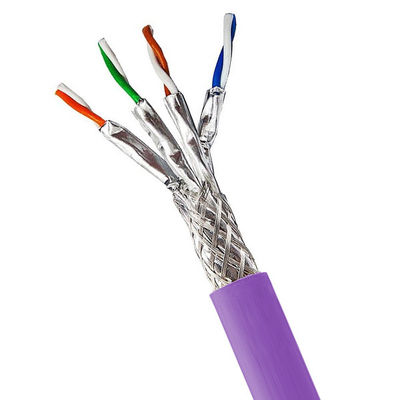

Construction Details

Component	Specification
Conductor	Bare Solid Copper (elongation: 19-24%)
Insulation	PE Skin-Foam-Skin
Pair Shield	Polyester/Aluminium (PET/ALU) ≥ 115% coverage
Braid	Aluminum-magnesium braided ≥ 40% coverage
Jacket	PVC, 60P, -20~75℃

Electrical Properties

Property	Value
Conductor Resistance at 20°C	≤ 9.5 Ω / 100m
Resistance unbalance within a pair	≤ 2%
Insulation Resistance	>1500 MΩ / 100m
Mutual capacitance	5600pF / 100m MAX
Characteristic impedance at 100MHz	100 ± 15 Ω

Applications

This high-performance Cat7 cable is ideal for:

High-speed data centers and server rooms
Commercial office networks
Educational institutions and research facilities
Healthcare IT infrastructure
Industrial automation systems
Bandwidth-intensive applications (4K video, large file transfers)

Frequently Asked Questions

Q: What is the brand name of this product?

A: The brand name is ITI-LINK.

Q: What is the model number?

A: Model number is ITI-CT7SF-008.

Q: Where is this product manufactured?

A: Manufactured in SHENZHEN.

Q: What is the maximum data transfer rate?

A: Supports up to 10Gbps data transfer.

Q: Is this cable suitable for outdoor use?

A: No, this cable is designed for indoor use only.
