| Brand Name: | ITI-LINK |
| Model Number: | ITI-CTSF7A-009 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

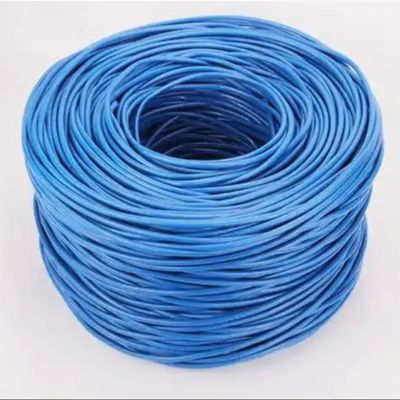

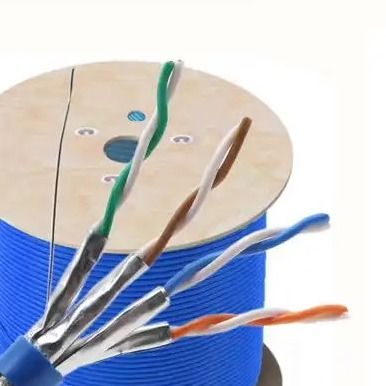

ITI-LINK presents the ITI-CTSF7A-009 SFTP CAT7A LSZH Ethernet Cable, engineered to meet the stringent demands of industrial settings and data centers. This high-performance cable features a 50-meter length with a blue LSZH jacket for easy identification and enhanced safety.
| Cable Type | SFTP |
|---|---|
| Category | CAT7A |
| Conductor Size | 23 AWG |
| Conductor Material | Copper |
| Jacket Material | LSZH |
| Color | Blue |
| Frequency | 1000 MHz |
| Cable Length | 50m |
| Construction Item | Description |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Insulation Material | PE Skin-Foam-Skin |
| Pair Shield | Polyester/Aluminium (PET/ALU), ≥ 115% coverage |
| Braid | ɸ 0.12mm Aluminum-magnesium braided, ≥ 40% coverage |
| Jacket Material | LSZH, 60P, -20~75℃ |
| Frequency (MHz) | Attenuation (Max dB/100m) | Propagation Delay (Max ns/100m) | Return Loss (Min dB) |
|---|---|---|---|
| 4 | 3.7 | 552 | 78.0 |
| 100 | 18.5 | 538 | 75.4 |
| 1000 | 61.9 | 535 | 60.4 |
