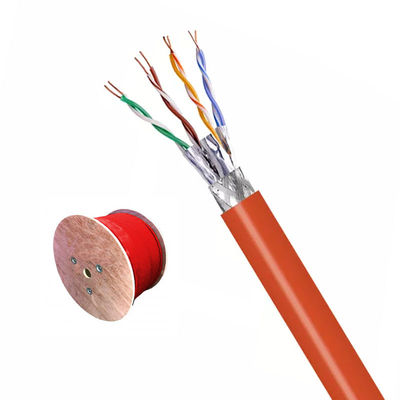

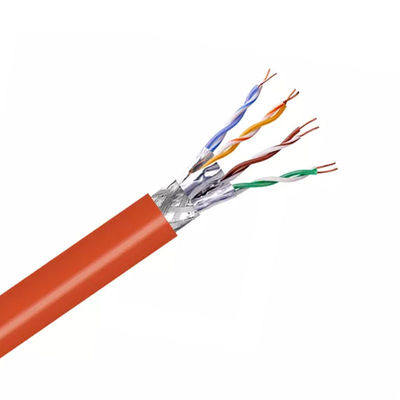

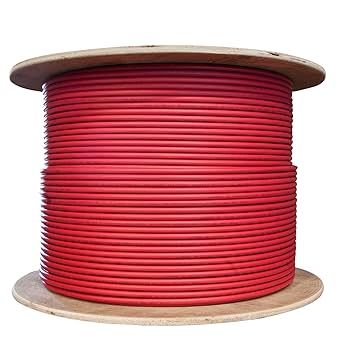

CAT7A SFTP LSZH High Speed Ethernet Cable For Industrial Data Center Networks

Name: CAT7A SFTP LSZH High Speed Ethernet Cable For Industrial Data Center Networks
Brand: Integrity Cable Co., Limited
SKU: ITI-CTSF7A-012
Availability: InStock

Brand Name:	ITI -LINK
Model Number:	ITI-CTSF7A-012
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Jacket Color:

Red

Category:

CAT7A

Maximum Frequency:

1000 MHz

Cable Type:

SFTP

Jacket Material:

LSZH

Cable Length:

50m

Conductor Size:

23 AWG

Transmission Speed:

10 Gbps

Packaging Details:

Outer box size (for packing): 64X32X23CM

Highlight:

CAT7A SFTP industrial Ethernet cable

LSZH high speed network cable

data center SFTP CAT7A cable

Product Description

CAT7A SFTP LSZH High Speed Ethernet Cable For Industrial Data Center Networks

The ITI-CTSF7A-012 CAT7A SFTP Ethernet cable delivers high-performance connectivity for industrial and data center applications requiring superior shielding and fire safety. This 23AWG SFTP CAT7A cable provides reliable 10Gbps data transmission at bandwidths up to 1000MHz.

Key Specifications

Jacket Color: Red

Category: CAT7A

Maximum Frequency: 1000 MHz

Cable Type: SFTP

Jacket Material: LSZH

Cable Length: 50m

Conductor Size: 23 AWG

Transmission Speed: 10 Gbps

Key Features

Solid oxygen-free copper conductors for minimal attenuation and maximum signal integrity
Double shielding (foil + braided) for exceptional EMI/RFI protection in noisy environments
LSZH (Low Smoke Zero Halogen) jacket for enhanced fire safety compliance
Bright red jacket for improved visibility in complex installations
Factory-tested for attenuation, NEXT, and return loss to ensure consistent quality

Technical Specifications

Construction & Electrical Properties

Construction	Electrical Properties
Conductor: Bare Solid Copper (23AWG)	Conductor Resistance at 20°C: ≤ 9.5 Ω / 100m
Insulation: PE Skin-Foam-Skin	Mutual capacitance: 5600 pF / 100m MAX
Shielding: Polyester/Aluminium + Aluminum-magnesium braid	Characteristic impedance at 100MHz: 100 ± 15 Ω
Jacket: LSZH, 60P, -20~75℃	Dielectric Strength: 1.00KV DC or 0.7 KV AC for 1 min

Transmission Performance

Frequency (MHz)	Attenuation (Max dB/100m)	Return Loss (Min dB)	NEXT (Min dB)
100	18.5	20.1	75.4
250	29.7	17.3	69.4
500	42.8	17.3	64.9
1000	61.9	15.1	60.4

Applications

Industrial network backbones requiring bulk CAT7A SFTP cables with superior EMI shielding
Data center horizontal cabling for high-speed, low-latency cloud computing connections
5G telecommunications networks including small cell deployments and base station backhaul
Industrial automation systems linking PLCs and control equipment in electrically noisy environments
Commercial buildings requiring LSZH Ethernet cables for enhanced fire safety compliance
