Cat8 SFTP 22AWG Orange PVC 40Gbps For Data Center Cable 1000FT

Name: Cat8 SFTP 22AWG Orange PVC 40Gbps For Data Center Cable 1000FT
Brand: Integrity Cable Co., Limited
SKU: ITI-CTSF8-005
Availability: InStock

Brand Name:	ITI-LINK
Model Number:	ITI-CTSF8-005
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	500pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Frequency:

2000MHz

Jacket Color:

Orange

Jacket Material:

PVC

Cable Type:

SFTP

Category:

CAT8

Conductor Material:

Copper

Length:

1000ft

Conductor Size:

22AWG

Packaging Details:

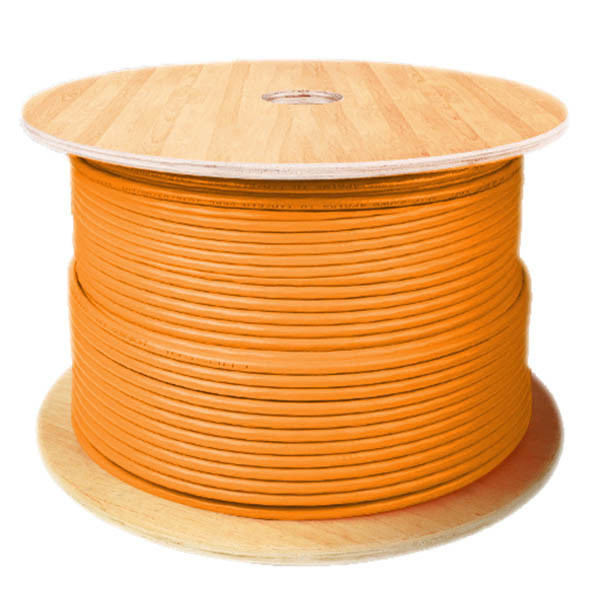

Wooden shaft packaging 40*26*20cm Outer box size：42*42*22cm

Highlight:

22AWG cable ethernet cat 8 sftp

1000FT cable ethernet cat 8 sftp

40Gbps cat8 sftp

Product Description

Cat8 SFTP 22AWG Orange PVC 40Gbps Data Center Cable (1000FT)

Premium Network Cable Features:

High-performance Cat8 SFTP cable with 2000MHz bandwidth
22AWG solid copper conductors for optimal signal transmission
Orange PVC jacket for durability and easy identification
SFTP shielding for superior EMI and crosstalk protection
Supports 40Gbps data transfer speeds
1000ft length for extensive network installations

Product Overview

This Cat8 SFTP cable is engineered for high-speed data center and enterprise network applications. The orange PVC jacket provides both protection and visibility in complex installations, while the SFTP shielding ensures reliable performance in EMI-heavy environments.

Technical Specifications

Parameter	Specification
Cable Type	SFTP
Frequency	2000MHz
Conductor Material	Copper
Category	CAT8
Jacket Color	Orange
Jacket Material	PVC
Length	1000ft
Conductor Size	22 AWG

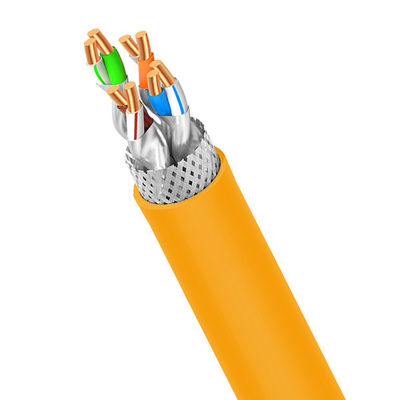

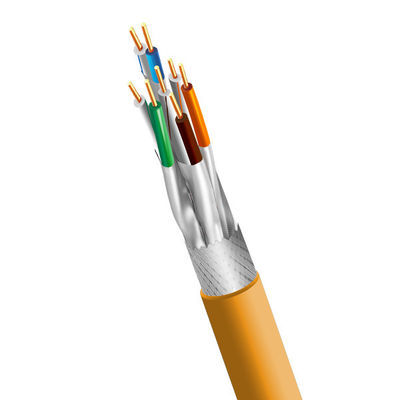

Detailed Construction

Construction Item	Description
Conductor Material	Bare Solid Copper (elongation: 19-24%)
Conductor Size	22 AWG
Insulation Material	PE Skin-Foam-Skin
Pair Colors	1p: white + blue stripes, 2p: white + orange stripes, 3p: white + green stripes, 4p: white + brown stripes
Pair Twist	Variable lay lengths (19.0mm to 25.0mm)
Shielding	Pair Shield: Polyester/Aluminium (PET/ALU) ≥200% coverage Braid: AL-MG ≥40% coverage
Jacket Material	PVC, 50P, -20~75℃
Jacket OD	8.6 ± 0.2mm

Electrical Properties

Property	Value
Conductor Resistance at 20°C	≤ 5.6 Ω / 100m
Resistance Unbalance	≤ 0.2%
Insulation Resistance	>1500 MΩ / 100m
Mutual Capacitance	5600pF / 100m MAX
Capacitance Unbalance	≤ 160 pF / 100m
Characteristic Impedance	100 ± 15 Ω

Transmission Properties

Frequency (MHz)	Insertion Loss (dB)	NEXT (dB)	Return Loss (dB)
1	3.0	73.5	19.1
100	5.2	40.5	18.0
500	11.9	27.9	9.6
2000	26.2	9.8	8.0

Applications

Data centers and server rooms requiring high-speed connectivity
Enterprise networks with bandwidth-intensive applications
Financial institutions and trading floors needing low-latency connections
Smart home installations for 4K/8K video streaming and gaming
Campus and industrial network infrastructures
Cloud computing and virtualization environments

Frequently Asked Questions

What is the brand name of this cable?

The brand name is ITI-LINK.

What is the model number?

Model number: ITI-CTSF8-005.

Where is this cable manufactured?

Manufactured in SHENZHEN.

What is the maximum bandwidth?

2000MHz bandwidth for high-speed data transfer.

Is this cable compatible with all devices?

Compatible with any RJ45 port device supporting CAT8 SFTP cables.

Can I print my logo on the cable?

Yes, please inform us before production.

What warranty do you offer?

10-year product warranty.
