| Brand Name: | ITI-LINK |
| Model Number: | ITI-CTSF8-002 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 800pcs/day |

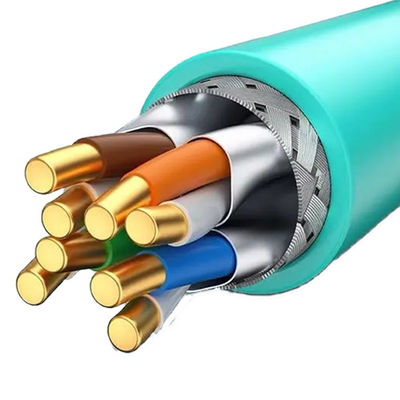

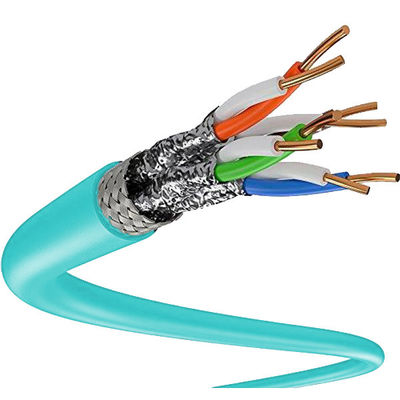

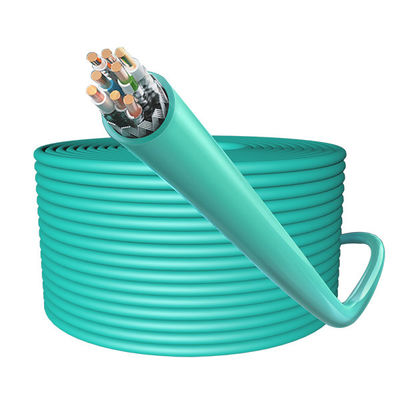

This premium CAT8 SFTP 22AWG Green LSZH LAN cable delivers 40Gbps capacity across 305m (1000ft), having passed rigorous Fluke testing. Engineered for demanding data center environments, it ensures reliable high-speed data transmission for applications including video streaming, online gaming, and large file transfers.
| Parameter | Value |
|---|---|
| Cable Type | SFTP |
| Category | CAT8 |
| Conductor Size | 22AWG |
| Conductor Material | Bare Solid Copper |
| Length | 1000ft (305m) |
| Frequency | 2000MHz |
| Jacket Material | LSZH |
| Jacket Color | Green |
| Property | Value |
|---|---|
| Conductor Resistance at 20°C | ≤ 5.6 Ω / 100m |
| Resistance unbalance within a pair | ≤ 0.2% |
| Insulation Resistance | >1500 MΩ / 100m |
| Mutual capacitance | 5600pF / 100m MAX |
| Characteristic impedance at 100MHz | 100 ± 15 Ω |
