| Brand Name: | ITI-LINK |
| Model Number: | ITI-CTSF8-010 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
| Parameter | Value |
|---|---|
| Cable Type | SFTP |
| Category | CAT8 |
| Conductor Material | Copper |
| Conductor Size | 22AWG |
| Jacket Material | LSZH |
| Jacket Color | Orange |

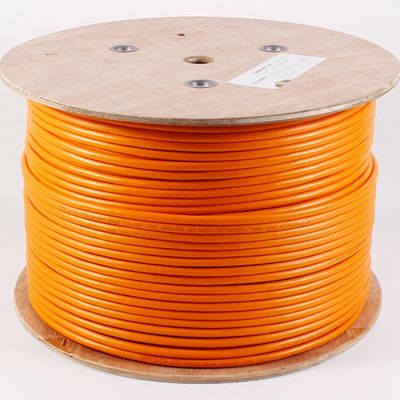

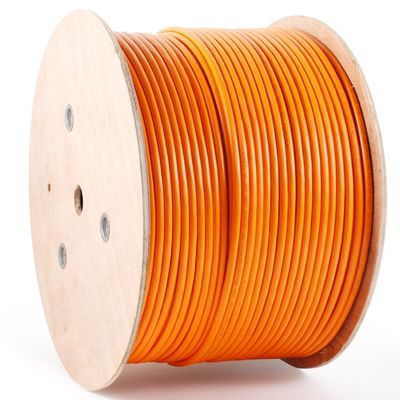

| Length | 100m |
| Frequency | 2000MHz |

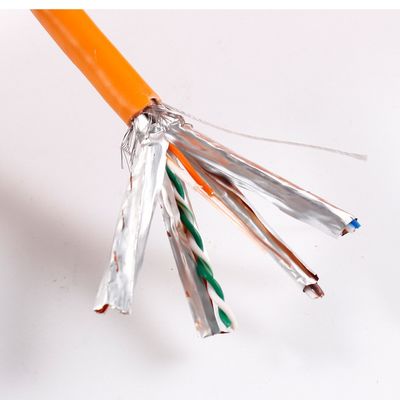

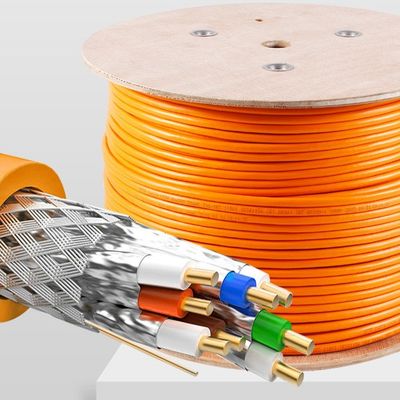

| Construction Item | Description |
|---|---|
| Conductor | Bare Solid Copper (elongation: 19-24%) |
| Insulation | PE Skin-Foam-Skin |
| Pair Twist | Variable lay lengths from 19.0mm to 25.0mm |
| Pair Shield | Polyester/Aluminium (PET/ALU) with ≥200% coverage |
| Braid | AL-MG with ≥40% coverage |
| Jacket | LSZH, 60P, -20~75℃ |
| Property | Value |
|---|---|
| Conductor Resistance at 20°C | ≤ 5.6 Ω / 100m |
| Resistance unbalance within a pair | ≤ 0.2% |
| Insulation Resistance | >1500 MΩ / 100m |
| Mutual capacitance | 5600 pF / 100m MAX |
| Characteristic impedance at 100MHz | 100 ± 15 Ω |
