| Brand Name: | ITI-LINK |
| Model Number: | ITI-CTSF8-009 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

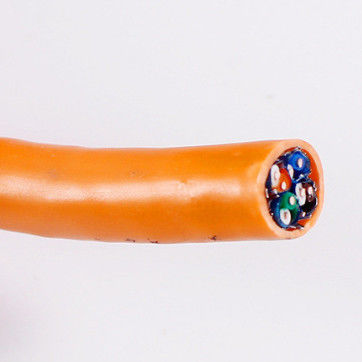

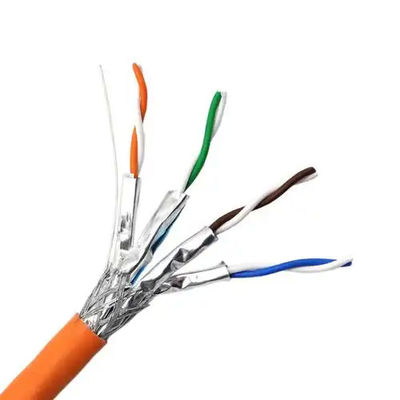

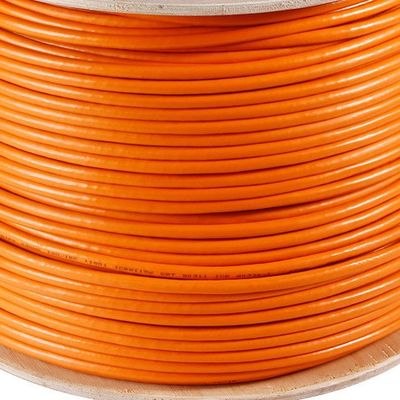

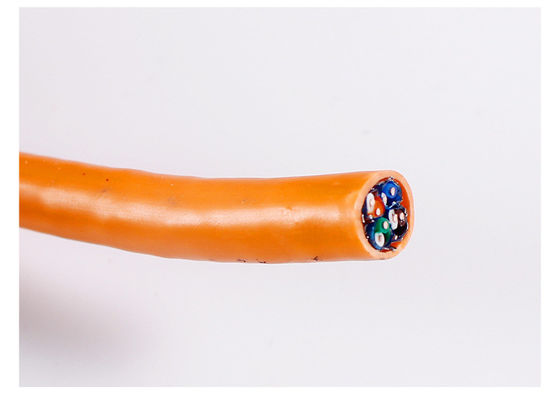

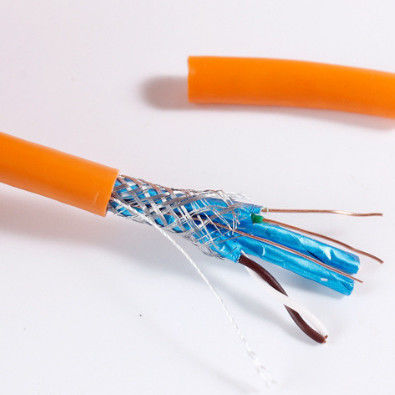

The ITI-LINK SFTP CAT8 Cable (model ITI-CTSF8-009) delivers exceptional performance for demanding network environments. Featuring an orange LSZH (Low Smoke Zero Halogen) jacket, this cable combines superior safety with high-speed data transmission capabilities.
| Parameter | Value |
|---|---|
| Cable Type | SFTP |
| Category | CAT8 |
| Conductor Material | Copper |
| Conductor Size | 22AWG |
| Jacket Material | LSZH |
| Jacket Color | Orange |
| Length | 50M |
| Frequency | 2000MHz |
| Component | Specification |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Insulation Material | PE Skin-Foam-Skin |
| Pair Shield | Polyester/Aluminium (PET/ALU) with ≥200% coverage |
| Braid | AL-MG with ≥40% coverage |
| Jacket | LSZH, 60P, -20~75℃ |
| Frequency (MHz) | Insertion Loss (dB) | NEXT (dB) | Return Loss (dB) |
|---|---|---|---|
| 1 | 3.0 | 73.5 | 19.1 |
| 100 | 5.2 | 40.5 | 18.0 |
| 1000 | 17.5 | 19.3 | 8.0 |
| 2000 | 26.2 | 9.8 | 8.0 |
