| Brand Name: | ITI-LINK |
| Model Number: | ITI-CTF8-021 |
| MOQ: | 1000pcs |
| Price: | 50$-100$ |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

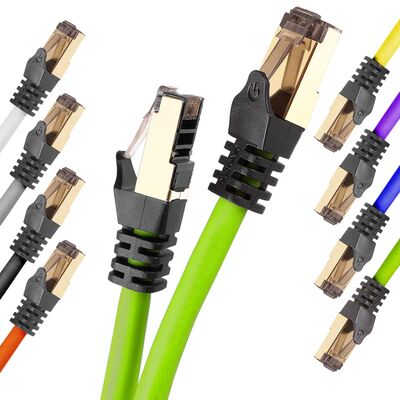

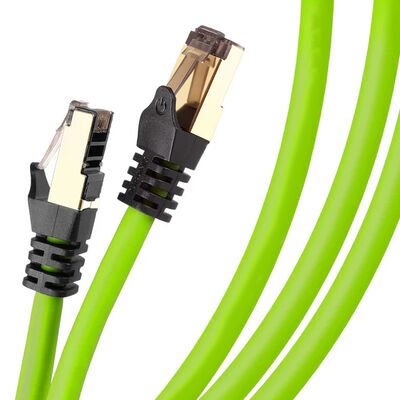

The ITI-LINK CAT8 FFTP Cable delivers reliable 40Gbps high-speed connectivity for modern network infrastructures. Designed as a professional Shielded LAN Cable, it combines 2000MHz bandwidth, Solid Copper conductors, and FFTP shielding for superior stability. With an LSZH safety jacket, this CAT8 cable is widely used as a Data Center Cable and Industrial Network Cable in demanding environments.
| Construction Item | Description | Electrical Property | Value |
|---|---|---|---|
| Conductor | Material | Conductor Resistance at 20°C | ≤ 5.6 Ω / 100m |
| Bare Solid Copper (elongation: 19-24%) | Resistance unbalance within a pair | ≤ 0.2% | |
| Insulation | Material: PE Skin-Foam-Skin | Insulation Resistance at 20°C | >1500 MΩ / 100m |
| OD: 1.62 ±0.01 mm | Mutual capacitance | 5600 pF / 100m MAX | |
| Average THK: 0.50 mm | Capacitance unbalance pair to ground | ≤ 160 pF / 100m | |
| Pair Shield | Material: Polyester/Aluminium (PET/ALU) | Characteristic impedance at 100MHz | 100 ± 15 Ω |
| Jacket | Material: LSZH, 60P, -20~75℃ | Dielectric Strength Test Voltage | No breakdown |
| Component | Property | Value |
|---|---|---|
| Insulation | Elongation before aging | ≥ 200% |
| Tensile strength before aging | ≥ 10 MPa | |
| Elongation after aging | ≥ 150% | |
| Tensile strength after aging | ≥ 8 MPa | |
| Jacket | Elongation before aging | ≥ 125% |
| Tensile strength before aging | ≥ 10 MPa | |
| Elongation after aging | ≥ 100% | |
| Tensile strength after aging | ≥ 8 MPa |
| Property | Standard | Value |
|---|---|---|
| Conductor Resistance at 20°C | NF EN 50289-1-2 / IEC 60189-1 | ≤ 5.6 Ω / 100m |
| Resistance unbalance within a pair | NF EN 50289-1-2 / IEC 60708 | ≤ 0.2% |
| Dielectric Strength Test Voltage | NF EN 50289-1-3 / IEC 61196-1-105 | No breakdown |
| Insulation Resistance at 20°C | NF EN 50289-1-4 / IEC 60885-1 | >1500 MΩ / 100m |
| Mutual capacitance | NF EN 50289-1-5 / IEC 60189-1 | 5600 pF / 100m MAX |
| Capacitance unbalance pair to ground | NF EN 50289-1-5 / IEC 60189-1 | ≤ 160 pF / 100m |
| Characteristic impedance at 100MHz | NF EN 50289-1-11 / IEC 61156-1 | 100 ± 15 Ω |
| Spark Test | UL444 | 2000 ± 250VOC |
