| Brand Name: | ITI -LINK |
| Model Number: | ITI-CTF8-012 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

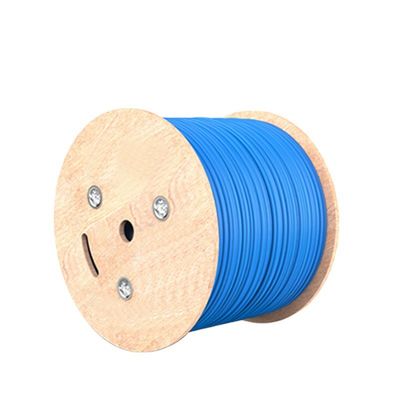

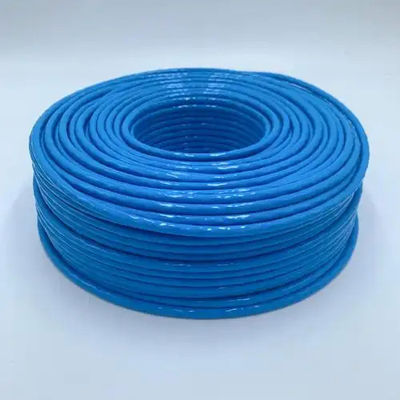

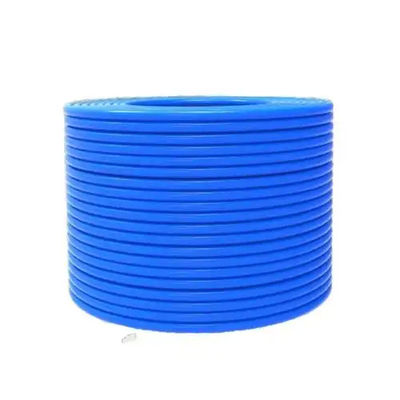

ITI-LINK presents the ITI-CTF8-012, a premium CAT8 FFTP LSZH Cable designed for wholesale customers and demanding networking environments. Featuring 22AWG stranded copper conductors, a blue Low Smoke Zero Halogen jacket, and 2000MHz bandwidth, this cable delivers exceptional data transmission reliability for data centers and industrial applications.
| Cable Category | CAT8 LAN Cable |
| Jacket Material | LSZH |
| Jacket Color | Blue |
| Length | 100 meters |
| Conductor Material | Copper |
| Conductor Gauge | 22AWG |
| Shielding | FTP |
| Bandwidth | 2000MHz |

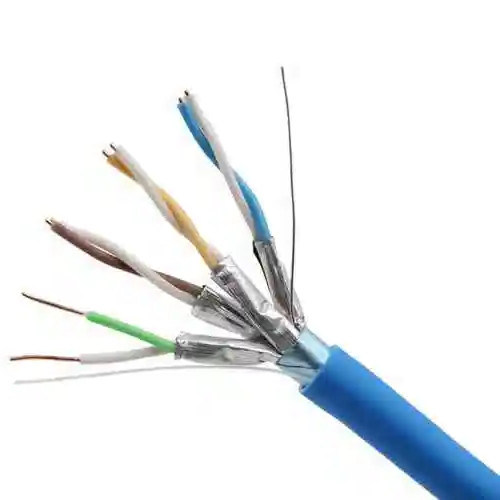

| Construction Item | Description |
|---|---|
| Conductor Material | Bare Solid Copper (elongation: 19-24%) |
| Insulation Material | PE Skin-Foam-Skin |
| Pair Twist Lay | 1p: S=19.0 mm (28%) 2p: S=23.5 mm (31%) 3p: S=21.5 mm (33%) 4p: S=25.0 mm (36%) |
| Pair Shield | Polyester/Aluminium (PET/ALU) with ≥ 200% coverage |
| Braid | AL-MG with ≥ 40% coverage |
| Jacket Material | LSZH, 60P, -20~75℃ |
| Property | Standard | Value |
|---|---|---|
| Conductor Resistance at 20°C | NF EN 50289-1-2 / IEC 60189-1 | ≤ 5.6 Ω / 100m |
| Resistance unbalance within a pair | NF EN 50289-1-2/ IEC 60708 | ≤ 0.2% |
| Dielectric Strength Test Voltage | NF EN 50289-1-3 / IEC 61196-1-105 | No breakdown |
| Insulation Resistance at 20°C | NF EN 50289-1-4 / IEC 60885-1 | >1500 MΩ / 100m |
| Mutual capacitance | NF EN 50289-1-5 /IEC 60189-1 | 5600pF / 100m MAX |
A: The brand of this CAT8 cable is ITI-LINK.
A: The model number of this CAT8 cable is ITI-CTF8-012.
A: This CAT8 cable is manufactured in SHENZHEN.
A: Yes, this CAT8 cable is backward compatible with CAT6, CAT6a, CAT5e, and earlier categories.
A: This CAT8 cable supports data transfer speeds of up to 40Gbps over distances up to 100 meters.
