| Brand Name: | ITI -LINK |
| Model Number: | ITI-CTF8-013 |
| MOQ: | 1000pcs |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |

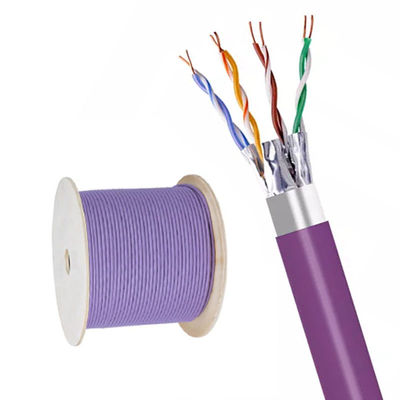

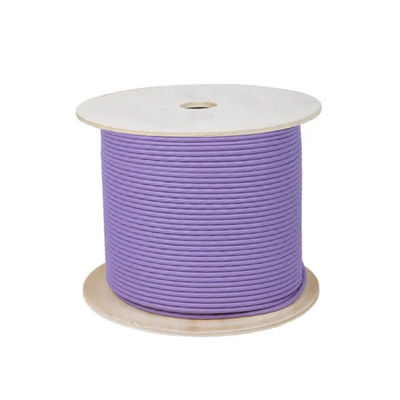

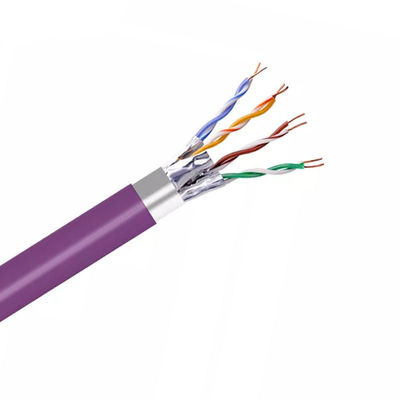

The INTEGRITY ITI-CTF8-013 CAT8 FFTP Ethernet cable is engineered for mission-critical networking in data centers, 5G base stations, and industrial automation environments. With a 2000MHz bandwidth and 40Gbps short-link capability, this FFTP CAT8 cable ensures ultra-low latency and future-proof capacity.
| Construction Item Description | Electrical Property |
|---|---|
| Conductor Material: Bare Solid Copper (elongation: 19-24%) OD: 22 AWG |
Conductor Resistance at 20°C: ≤ 5.6 Ω / 100m Resistance unbalance within a pair: ≤ 0.2% |
| Insulation Material: PE Skin-Foam-Skin OD: 1.62 ±0.01 mm Average THK: 0.50 mm Color: 1p: white + 2 blue stripes & blue 2p: white + 2 orange stripes & orange 3p: white + 2 green stripes & green 4p: white + 2 brown stripes & brown |
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V: >1500 MΩ / 100m Mutual capacitance: 5600 pF / 100m MAX Capacitance unbalance pair to ground at 800Hz or 1 kHz: ≤ 160 pF / 100m Characteristic impedance at 100MHz: 100 ± 15 Ω Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min: No breakdown |
| Pair Twist Lay & Direction: 1p: S=19.0 mm (28%) 2p: S=23.5 mm (31%) 3p: S=21.5 mm (33%) 4p: S=25.0 mm (36%) |
Mechanical Property insulation elongation before aging: ≥ 200% tensile strength before aging: ≥10 MPa elongation after aging: ≥ 150% tensile strength after aging: ≥8 MPa |
| Jacket Material: LSZH, 60P, -20~75℃ Hardness: 81± 3 OD: 8.6 ± 0.2 Average THK: 0.65 Color: White Marking Color: black Marking: according to the customer's requirements |
jacket elongation before aging: ≥ 125 % tensile strength before aging: ≥ 10 MPa elongation after aging: ≥ 100 % tensile strength after aging: ≥ 8 MPa |
